A good PCB layout for the TPS43061RTET involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the input and output traces. Additionally, it's recommended to use a separate analog and digital ground plane to reduce noise coupling.
To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Additionally, ensure that the output capacitor is properly sized and that the input voltage is within the recommended range. If oscillations occur, try adding a small capacitor (e.g., 10nF) between the VIN and GND pins.
While the datasheet specifies a maximum input voltage of 5.5V, it's recommended to limit the input voltage to 5V to ensure reliable operation and minimize the risk of damage to the device.
The TPS43061RTET is rated for operation up to 125°C, but its performance may degrade at high temperatures. Ensure that the device is properly heatsinked and that the ambient temperature is within the recommended range to ensure reliable operation.
To troubleshoot issues with the TPS43061RTET, start by verifying the input voltage and current, and checking for proper PCB layout and component values. Use an oscilloscope to monitor the output voltage and input current. If issues persist, try replacing the device or consulting the datasheet and application notes for guidance.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS43061RTET Overview

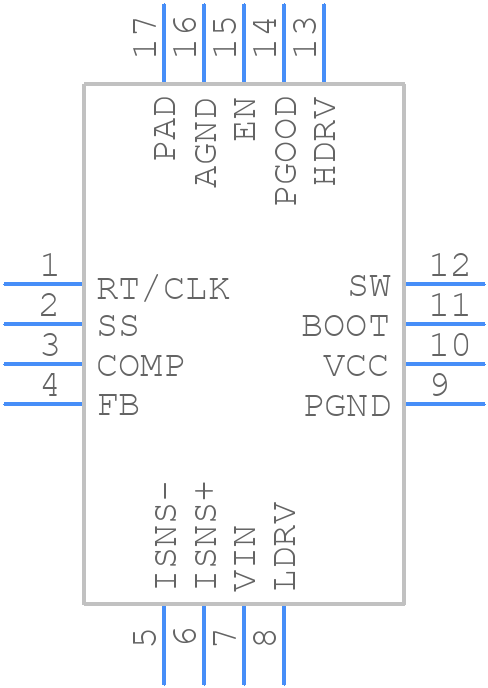

Use the download button to access the TPS43061RTET schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS43,
or try a keyword search, such as Switching Regulator or Controllers
