ALSO HAS A CONTROL TECHNIQUE OF PFM; OPERATES IN ADJUSTABLE MODE FROM 0.9 TO 11V
Analog IC - Other Type:
DUAL SWITCHING CONTROLLER
Control Mode:
CURRENT-MODE
Control Technique:
PULSE WIDTH MODULATION
Input Voltage-Max:
40 V
Input Voltage-Min:
2 V
Input Voltage-Nom:
13 V
JESD-30 Code:
R-PDSO-G38
JESD-609 Code:
e4
Length:
12.5 mm
Moisture Sensitivity Level:
3
Number of Functions:
1
Number of Outputs:
3
Number of Terminals:
38
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-40 °C
Output Current-Max:
3 A
Output Voltage-Max:
11 V
Output Voltage-Min:
0.9 V
Package Body Material:
PLASTIC/EPOXY
Package Code:
HTSSOP
Package Equivalence Code:
TSSOP38,.32
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Screening Level:
AEC-Q100
Seated Height-Max:
1.2 mm
Surface Mount:
YES
Switcher Configuration:
PHASE-SHIFT
Switching Frequency-Max:
600 kHz
Technology:
BICMOS
Temperature Grade:
AUTOMOTIVE
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
0.65 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Width:
6.1 mm
TPS43335QDAPRQ1 Frequently Asked Questions (FAQs)
Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow general high-frequency PCB design guidelines, such as using a solid ground plane, minimizing trace lengths, and using vias to connect the input and output capacitors to the ground plane.
The selection of input and output capacitors depends on the specific application requirements. In general, low-ESR capacitors with a high ripple current rating are recommended. The datasheet provides guidelines for capacitor selection, but it's also recommended to consult the capacitor manufacturer's datasheet and application notes.
The TPS43335QDAPRQ1 is rated for operation up to 125°C, but the maximum ambient temperature for reliable operation depends on the specific application and the thermal design of the system. It's recommended to follow the thermal design guidelines in the datasheet and to perform thermal simulations to ensure reliable operation.
To ensure EMC compliance, it's recommended to follow the guidelines in the datasheet and to consult the relevant EMC standards and regulations. This includes using a shielded layout, minimizing radiated emissions, and using filtering and shielding components as needed.
The recommended input voltage range for optimal performance is 2.7V to 5.5V, but the device can operate down to 2.3V with reduced performance. It's recommended to consult the datasheet and to perform characterization tests to determine the optimal input voltage range for the specific application.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS43335QDAPRQ1 Overview

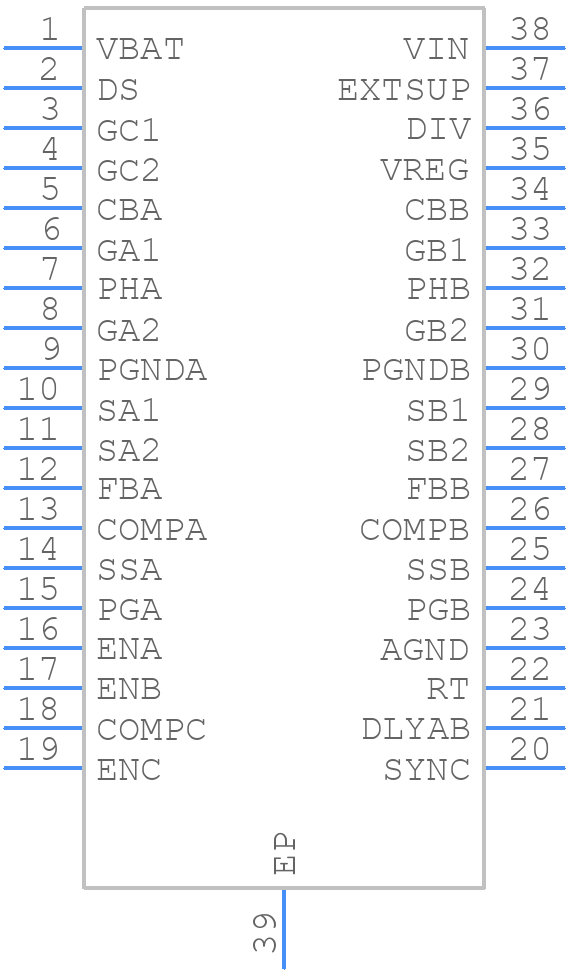

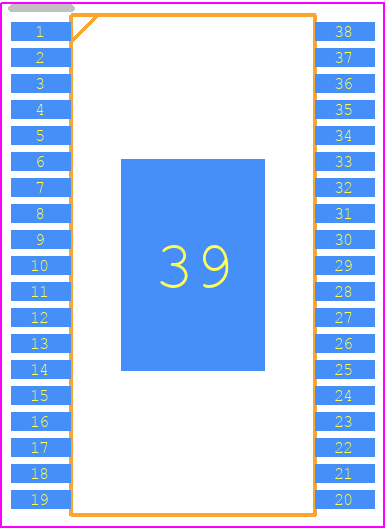

Use the download button to access the TPS43335QDAPRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS43,
or try a keyword search, such as Switching Regulator or Controllers
