ALSO HAS A CONTROL TECHNIQUE OF PFM; OPERATES IN ADJUSTABLE MODE FROM 0.9 TO 11V
Analog IC - Other Type:
DUAL SWITCHING CONTROLLER
Control Mode:
CURRENT-MODE
Control Technique:
PULSE WIDTH MODULATION
Input Voltage-Max:
40 V
Input Voltage-Min:
2 V
Input Voltage-Nom:
13 V
JESD-30 Code:
R-PDSO-G38
JESD-609 Code:
e4
Length:
12.5 mm
Moisture Sensitivity Level:
3
Number of Functions:
1
Number of Outputs:
3
Number of Terminals:
38
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-40 °C
Output Current-Max:
3 A
Output Voltage-Max:
11 V
Output Voltage-Min:
0.9 V
Package Body Material:
PLASTIC/EPOXY
Package Code:
HTSSOP
Package Equivalence Code:
TSSOP38,.32
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Screening Level:
AEC-Q100
Seated Height-Max:
1.2 mm
Surface Mount:
YES
Switcher Configuration:
PHASE-SHIFT
Switching Frequency-Max:
600 kHz
Technology:
BICMOS
Temperature Grade:
AUTOMOTIVE
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
0.65 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Width:
6.1 mm
TPS43336QDAPRQ1 Frequently Asked Questions (FAQs)
Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow good PCB design practices, such as keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing trace lengths and widths to reduce parasitic inductance and capacitance.
To ensure stability, follow the recommended component values and PCB layout, and make sure the output capacitor has a low equivalent series resistance (ESR). Additionally, consider adding a small ceramic capacitor (e.g., 10nF) in parallel with the output capacitor to improve stability.
Although the datasheet specifies a maximum input voltage of 5.5V, it's recommended to limit the input voltage to 5V to ensure reliable operation and prevent damage to the IC.
The TPS43336QDAPRQ1 is rated for operation up to 125°C, but it's essential to consider the thermal design and ensure proper heat dissipation to prevent overheating. Use a thermal pad or heat sink if necessary, and follow the recommended operating conditions.
The output voltage ripple and noise can be calculated using the equations provided in the datasheet. Additionally, consider using a filter capacitor (e.g., 10uF) at the output to reduce ripple and noise.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS43336QDAPRQ1 Overview

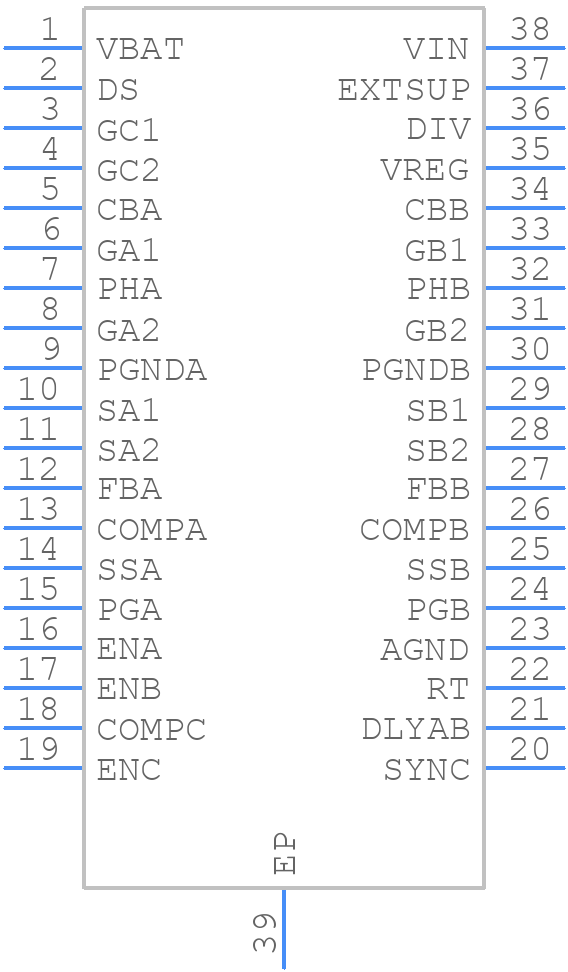

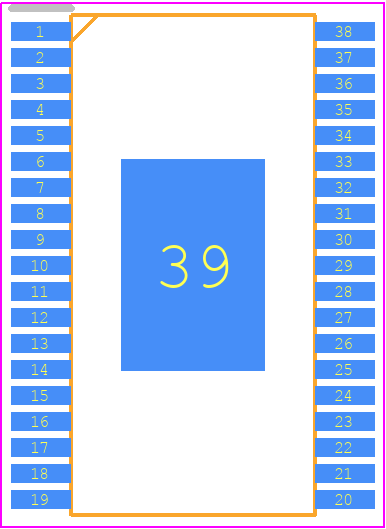

Use the download button to access the TPS43336QDAPRQ1 schematic symbol, PCB footprint, and 3D model.
