TPS43340QPHPRQ1 - Texas Instruments

Description: Automotive 4V to 40V Dual Synchronous Buck Controller, 2A Buck Converter, and 300mA LDO

Download TPS43340QPHPRQ1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

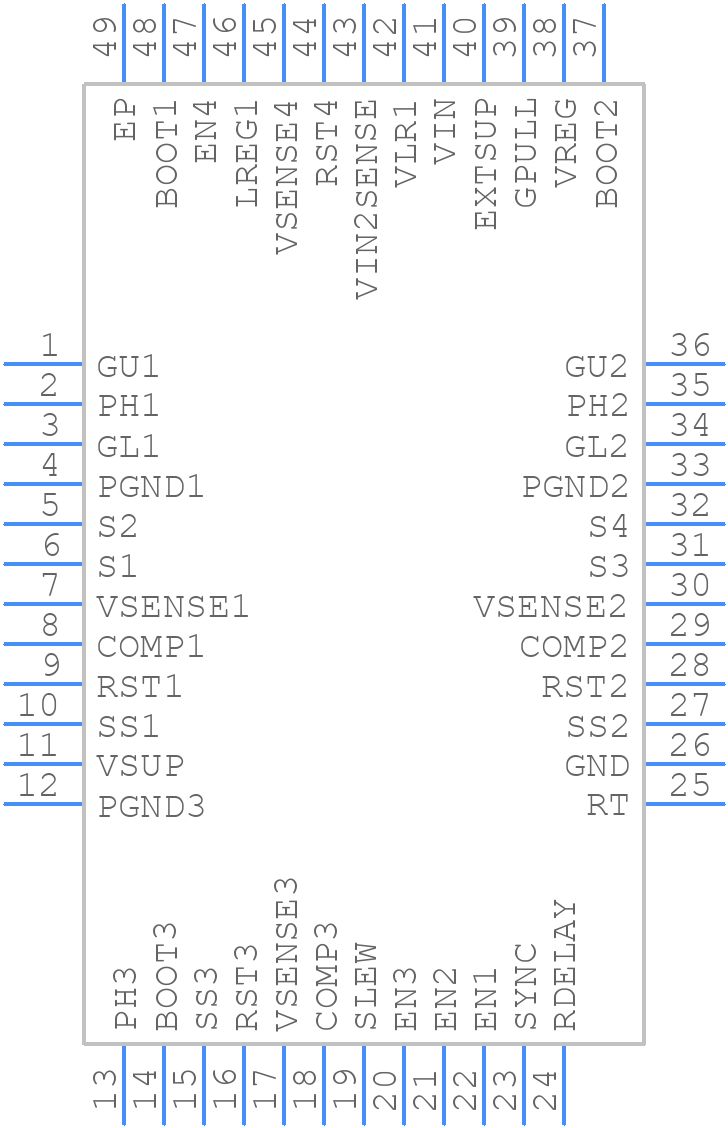

Symbol
TPS43340QPHPRQ1 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS43340QPHPRQ1 - Texas Instruments PCB footprint - Quad Flat Packages - Quad Flat Packages - PHP-
click to zoom
3D Models
TPS43340QPHPRQ1 - Texas Instruments - 3D model - Quad Flat Packages - PHP-
click to zoom

TPS43340QPHPRQ1 Details

  • Manufacturer Part Number:

    TPS43340QPHPRQ1

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFP

  • Pin Count:

    48

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    SWITCHING CONTROLLER

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    40 V

  • Input Voltage-Min:

    4 V

  • Input Voltage-Nom:

    13 V

  • JESD-30 Code:

    S-PQFP-G48

  • JESD-609 Code:

    e4

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Outputs:

    4

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    2 A

  • Output Voltage-Max:

    11 V

  • Output Voltage-Min:

    0.9 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTFQFP

  • Package Equivalence Code:

    TQFP48,.35SQ

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, HEAT SINK/SLUG, THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.2 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    SINGLE

  • Switching Frequency-Max:

    600 kHz

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7 mm

TPS43340QPHPRQ1 Frequently Asked Questions (FAQs)

  • A good PCB layout for the TPS43340QPHPRQ1 involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the input and output traces. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • To ensure stability, it's essential to follow the recommended component values and PCB layout guidelines. Additionally, the output capacitor should be selected based on the specific application requirements, and the input capacitor should be a low-ESR type. A minimum of 10uF output capacitance is recommended.
  • The TPS43340QPHPRQ1 can handle a maximum input voltage of 6.5V. Exceeding this voltage may cause damage to the device.
  • The TPS43340QPHPRQ1 is rated for operation up to 125°C. However, the device's performance and reliability may degrade at high temperatures. It's essential to follow the recommended operating conditions and thermal management guidelines to ensure reliable operation.
  • To troubleshoot issues with the TPS43340QPHPRQ1, start by verifying the input voltage, output voltage, and current. Check for proper PCB layout, component selection, and thermal management. Use an oscilloscope to monitor the output voltage and current. Consult the datasheet and application notes for guidance on troubleshooting common issues.
