OPERATES IN ADJUSTABLE MODE FROM 0.9 TO 11V, ALSO HAS CONTROL TECHNIQUE OF PFM
Analog IC - Other Type:
DUAL SWITCHING CONTROLLER
Control Mode:
CURRENT-MODE
Control Technique:
PULSE WIDTH MODULATION
Input Voltage-Max:
40 V
Input Voltage-Min:
4 V
Input Voltage-Nom:
13 V
JESD-30 Code:
R-PDSO-G38
JESD-609 Code:
e4
Length:
12.5 mm
Moisture Sensitivity Level:
3
Number of Functions:
1
Number of Outputs:
2
Number of Terminals:
38
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-40 °C
Output Current-Max:
6 A
Output Voltage-Max:
11 V
Output Voltage-Min:
0.9 V
Output Voltage-Nom:
5.8 V
Package Body Material:
PLASTIC/EPOXY
Package Code:
HTSSOP
Package Equivalence Code:
TSSOP38,.32
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Screening Level:
AEC-Q100
Seated Height-Max:
1.2 mm
Surface Mount:
YES
Switcher Configuration:
PHASE-SHIFT
Switching Frequency-Max:
600 kHz
Technology:
BICMOS
Temperature Grade:
AUTOMOTIVE
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
0.65 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Width:
6.1 mm
TPS43350QDAPRQ1 Frequently Asked Questions (FAQs)
A good PCB layout for the TPS43350QDAPRQ1 involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the input and output traces. Additionally, it's recommended to use a separate power plane for the input voltage and to keep the noise-sensitive analog traces away from the switching node.
The choice of input and output capacitors for the TPS43350QDAPRQ1 depends on the specific application requirements. In general, it's recommended to use low-ESR capacitors with a high ripple current rating. For the input capacitor, a 10uF to 22uF ceramic capacitor is a good starting point, while for the output capacitor, a 10uF to 47uF ceramic or electrolytic capacitor can be used.
The TPS43350QDAPRQ1 is rated for operation from -40°C to 125°C, but the maximum ambient temperature range depends on the specific application and the thermal design of the system. In general, it's recommended to keep the ambient temperature below 85°C for optimal performance and reliability.
The TPS43350QDAPRQ1 has a built-in overcurrent protection feature that can be enabled by connecting the OCSET pin to a resistor divider network. The resistor values can be calculated based on the desired overcurrent threshold and the internal current sense resistor value.
The recommended input voltage range for the TPS43350QDAPRQ1 is 2.7V to 5.5V, but the device can operate from 2.5V to 6V with reduced performance. It's recommended to use a voltage regulator or a voltage supervisor to ensure a stable input voltage.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS43350QDAPRQ1 Overview

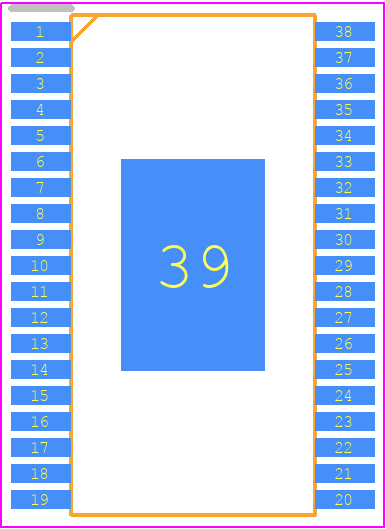

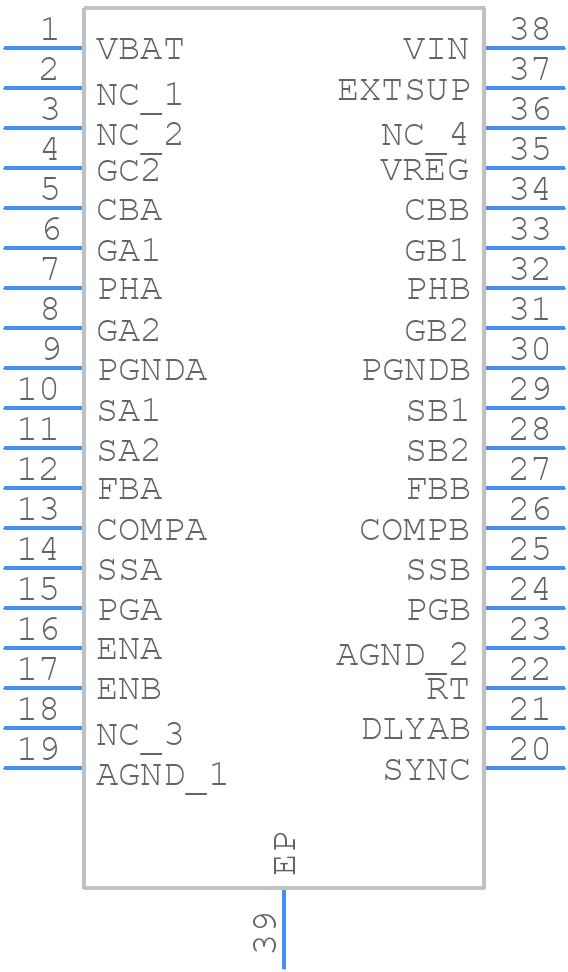

Use the download button to access the TPS43350QDAPRQ1 schematic symbol, PCB footprint, and 3D model.
