Texas Instruments provides a recommended PCB layout in the datasheet, but for optimal thermal performance, it's essential to follow the guidelines for thermal pad connection, thermal via placement, and copper pour design. A good rule of thumb is to use a minimum of 2 oz copper thickness and ensure a solid copper pour on the top and bottom layers.
When selecting an output capacitor, consider the output voltage, output current, and ripple requirements. A general guideline is to choose a capacitor with a capacitance value between 10uF to 22uF, and a voltage rating at least 1.5 times the output voltage. Additionally, ensure the capacitor's ESR (Equivalent Series Resistance) is within the recommended range to minimize output voltage ripple.
Although the datasheet specifies a maximum input voltage of 5.5V, it's essential to consider the voltage tolerance and transient voltage protection. As a general rule, it's recommended to limit the input voltage to 5V or less to ensure reliable operation and prevent damage to the device.
The TPS4H160BQPWPRQ1 has a built-in overcurrent protection feature. To implement it, connect a sense resistor (Rs) between the output and GND, and set the overcurrent threshold (Ilim) using an external resistor (Rlim) connected between the ILIM pin and GND. The device will automatically limit the output current to the set threshold during an overcurrent event.
The recommended operating temperature range for the TPS4H160BQPWPRQ1 is -40°C to 125°C. However, it's essential to consider the device's thermal derating, which may affect its performance and reliability at higher temperatures. Always ensure the device operates within the specified temperature range to maintain optimal performance and prevent damage.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS4H160BQPWPRQ1 Overview

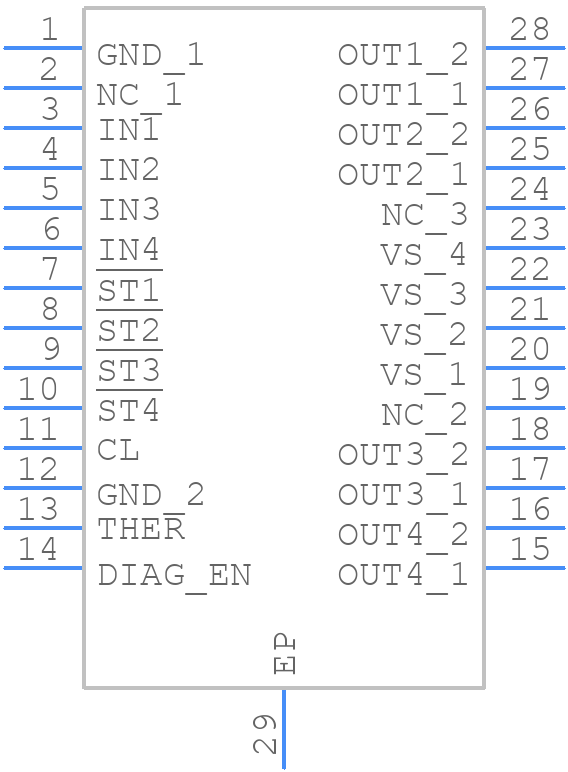

Use the download button to access the TPS4H160BQPWPRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS4H,
or try a keyword search, such as Peripheral Drivers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
