TPS51100DGQRG4 - Texas Instruments

Description: Power Management Specialised - PMIC 3A Source/Sink DDR Terminator Regulator

Download TPS51100DGQRG4 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

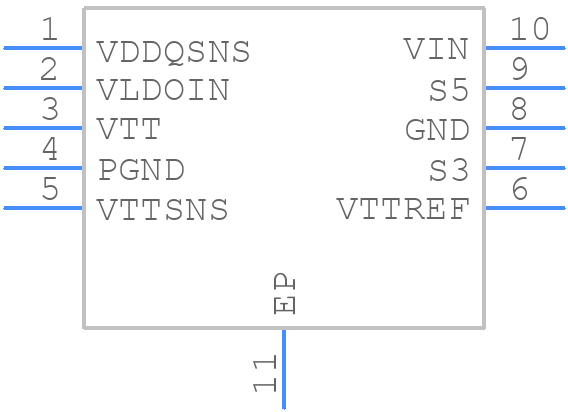

TPS51100DGQRG4 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS51100DGQRG4 - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DGQ0010D
click to zoom
3D Models
TPS51100DGQRG4 - Texas Instruments - 3D model - Small Outline Packages - DGQ0010D
click to zoom

TPS51100DGQRG4 Details

  • Manufacturer Part Number:

    TPS51100DGQRG4

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    MSOP

  • Pin Count:

    10

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Input Voltage-Max:

    3.6 V

  • Input Voltage-Min:

    1.2 V

  • JESD-30 Code:

    S-PDSO-G10

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current1-Max:

    3 A

  • Output Voltage1-Min:

    0.6 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Equivalence Code:

    TSSOP10,.19,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Packing Method:

    TR, 13 INCH

  • Peak Reflow Temperature (Cel):

    260

  • Regulator Type:

    DDR TERMINATION REGULATOR

  • Seated Height-Max:

    1.1 mm

  • Surface Mount:

    YES

  • Terminal Finish:

    Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

TPS51100DGQRG4 Frequently Asked Questions (FAQs)

  • The maximum input voltage that can be applied to the TPS51100DGQRG4 is 6.5V, as specified in the datasheet. Exceeding this voltage may damage the device.
  • To ensure the stability of the output voltage, it is recommended to use a minimum output capacitance of 10uF with an ESR of 1ohm or less, as specified in the datasheet. Additionally, the input capacitance should be at least 10uF with an ESR of 1ohm or less.
  • The maximum output current that the TPS51100DGQRG4 can provide is 1A, as specified in the datasheet. Exceeding this current may cause the device to overheat or malfunction.
  • The soft-start time of the TPS51100DGQRG4 can be configured by connecting a capacitor from the SS pin to ground. The soft-start time is proportional to the capacitance value, with a larger capacitance resulting in a longer soft-start time.
  • The EN (enable) pin on the TPS51100DGQRG4 is used to enable or disable the device. When the EN pin is pulled high, the device is enabled and the output voltage is regulated. When the EN pin is pulled low, the device is disabled and the output voltage is turned off.
