Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow general high-frequency PCB design guidelines, such as using a solid ground plane, minimizing trace lengths, and using vias to connect the input and output capacitors to the ground plane.
The selection of input and output capacitors depends on the specific application requirements. In general, low-ESR capacitors with high ripple current ratings are recommended. The datasheet provides guidelines for capacitor selection, but it's also recommended to consult the capacitor manufacturer's datasheet and application notes.
The TPS51125RGETG4 is rated for operation up to 85°C ambient temperature, but it's recommended to derate the output current and voltage at higher temperatures to ensure reliable operation. Consult the datasheet for thermal derating guidelines.
To ensure EMC compliance, follow proper PCB layout and design guidelines, use shielding and filtering components as needed, and consult the datasheet and application notes for specific guidance on reducing electromagnetic interference (EMI).
The recommended input voltage range for the TPS51125RGETG4 is 2.7V to 5.5V, but it can operate down to 2.3V with reduced performance. It's recommended to consult the datasheet for specific performance characteristics at different input voltages.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS51125RGETG4 Overview

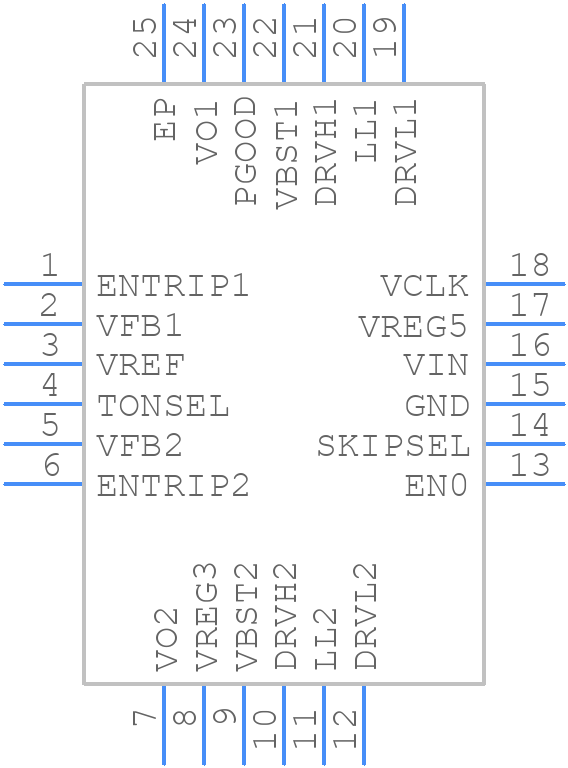

Use the download button to access the TPS51125RGETG4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS51,
or try a keyword search, such as Switching Regulator or Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
