A good PCB layout for optimal thermal performance involves placing the device near a thermal pad or a heat sink, and ensuring good airflow around the device. The datasheet provides some guidelines, but a more detailed application note (SLUA623) provides additional recommendations.
The choice of input and output capacitors depends on the specific application and requirements. A good starting point is to use X5R or X7R ceramic capacitors with a voltage rating of at least 1.5 times the maximum input voltage. The datasheet provides some guidance, but additional information can be found in the application note (SLUA623).
The maximum ambient temperature for the TPS51200AQDRCRQ1 is 85°C, but the device can operate up to 125°C junction temperature. However, the device's performance and reliability may degrade at higher temperatures, so it's essential to consider thermal management in the system design.
To ensure stability, follow the guidelines in the datasheet for output capacitor selection and layout. Additionally, ensure that the input voltage is within the recommended range, and the device is operated within its specified operating conditions. If oscillations occur, check the PCB layout, decoupling, and output capacitor selection.
The recommended input voltage range for the TPS51200AQDRCRQ1 is 2.7V to 5.5V. Operating the device outside this range may affect its performance, efficiency, and reliability.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS51200AQDRCRQ1 Overview

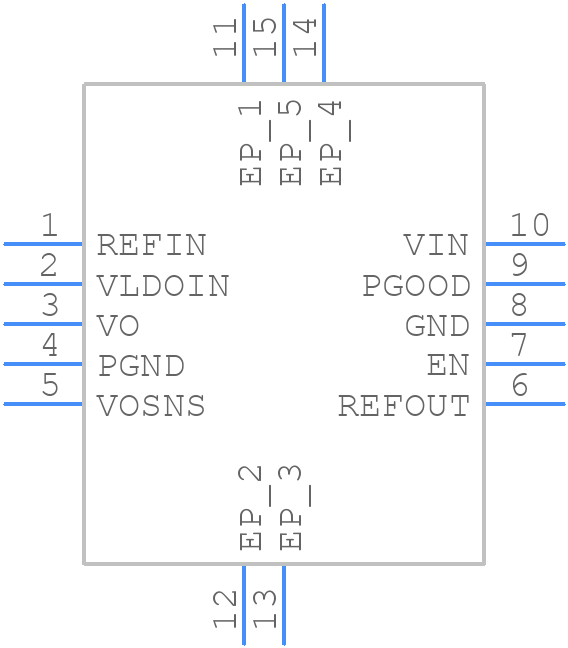

Use the download button to access the TPS51200AQDRCRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS51,
or try a keyword search, such as Other Regulators
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
