TPS51206DSQR - Texas Instruments

Description: 2A Peak Sink/Source DDR Termination Regulator with VTTREF Buffered Reference for DDR2/3/3L/4

Download TPS51206DSQR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

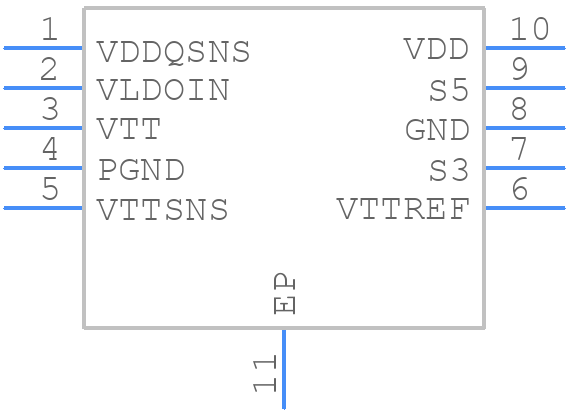

TPS51206DSQR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS51206DSQR - Texas Instruments PCB footprint - Small Outline No-lead - Small Outline No-lead - DSQ0010A
click to zoom
3D Models
TPS51206DSQR - Texas Instruments - 3D model - Small Outline No-lead - DSQ0010A
click to zoom

TPS51206DSQR Details

  • Manufacturer Part Number:

    TPS51206DSQR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SON

  • Pin Count:

    10

  • Country Of Origin:

    Malaysia, Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Input Voltage-Max:

    3.5 V

  • Input Voltage-Min:

    1 V

  • JESD-30 Code:

    S-PDSO-N10

  • JESD-609 Code:

    e4

  • Length:

    2 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current1-Max:

    2 A

  • Output Voltage1-Min:

    0.6 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC10,.08,16

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR, 7 INCH

  • Peak Reflow Temperature (Cel):

    260

  • Regulator Type:

    DDR TERMINATION REGULATOR

  • Seated Height-Max:

    0.8 mm

  • Surface Mount:

    YES

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2 mm

TPS51206DSQR Frequently Asked Questions (FAQs)

  • A good PCB layout for the TPS51206DSQR involves placing the input capacitors close to the VIN pin, using a solid ground plane, and keeping the high-current paths short and wide. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • Choose input capacitors with a voltage rating of at least 1.5 times the maximum input voltage, and an ESR of less than 1 ohm. For output capacitors, choose ones with a voltage rating of at least 1.5 times the output voltage, and an ESR of less than 0.1 ohm. X5R or X7R ceramic capacitors are recommended.
  • The maximum ambient temperature range for the TPS51206DSQR is -40°C to 125°C. However, the device can operate up to 150°C with derating.
  • The power dissipation of the TPS51206DSQR can be calculated using the formula: Pd = (VIN x IIN) + (VOUT x IOUT) + (VIN x IQ). Where VIN is the input voltage, IIN is the input current, VOUT is the output voltage, IOUT is the output current, and IQ is the quiescent current.
  • The recommended input voltage range for the TPS51206DSQR is 2.7V to 5.5V. However, the device can operate with input voltages as low as 2.3V with reduced performance.
