A good PCB layout for the TPS51206DSQT involves placing the input capacitors close to the VIN pin, using a solid ground plane, and keeping the high-current paths short and wide. TI provides a recommended layout in the datasheet and in application notes.
Choose input capacitors with low ESR and high ripple current rating. For output capacitors, choose ones with low ESR and high capacitance. TI recommends using ceramic or polymer capacitors with X5R or X7R dielectrics. The datasheet provides guidelines for capacitor selection.
The TPS51206DSQT is rated for operation from -40°C to 125°C. However, the maximum ambient temperature range depends on the specific application and the device's power dissipation. Consult the datasheet for thermal design considerations.
To ensure stability, follow the recommended PCB layout, choose the right input and output capacitors, and ensure the output voltage is within the specified range. Additionally, add a small ceramic capacitor (e.g., 10nF) between the VFB pin and GND to improve stability.
The TPS51206DSQT is capable of delivering up to 6A of output current. However, the actual output current capability depends on the input voltage, output voltage, and thermal design. Consult the datasheet for output current derating curves.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS51206DSQT Overview

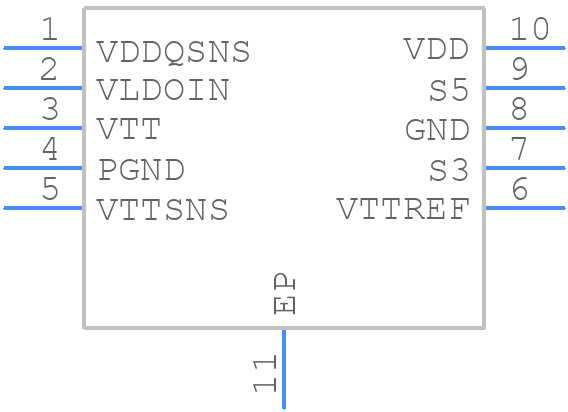

Use the download button to access the TPS51206DSQT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS51,
or try a keyword search, such as Other Regulators
