Texas Instruments provides a recommended PCB layout in the TPS5120MDBTREP datasheet (section 10.2) and in the application note SLUAAC4. It's essential to follow these guidelines to ensure optimal thermal performance and minimize thermal resistance.
The selection of input and output capacitors depends on the specific application requirements, such as ripple current, voltage rating, and ESR. TI provides guidance on capacitor selection in the datasheet (section 7.3) and in the application note SLUAAC4. Additionally, the TI Capacitor Selection Tool can be used to find suitable capacitors.
The TPS5120MDBTREP is rated for operation up to 85°C ambient temperature. However, it's essential to consider the device's thermal performance, power dissipation, and cooling mechanisms to ensure reliable operation within the specified temperature range.
The TPS5120MDBTREP has built-in OCP and SCP features. To implement these features, follow the guidelines in the datasheet (section 7.4) and application note SLUAAC4. Additionally, consider using external components, such as resistors and capacitors, to fine-tune the protection thresholds and response times.
The recommended startup sequence is to first apply the input voltage (VIN) and then enable the device (EN pin). This ensures proper startup and prevents unwanted behavior. The datasheet (section 7.2) provides more information on the startup sequence.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS5120MDBTREP Overview

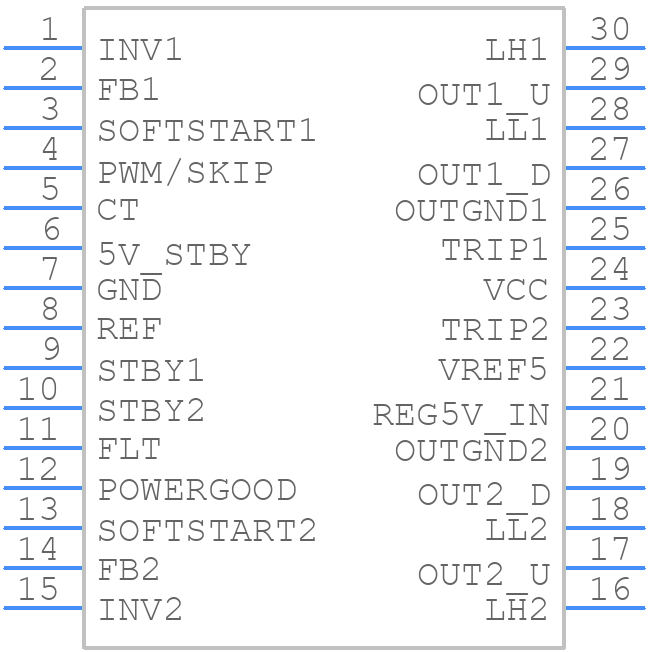

Use the download button to access the TPS5120MDBTREP schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS51,
or try a keyword search, such as Switching Regulator or Controllers
