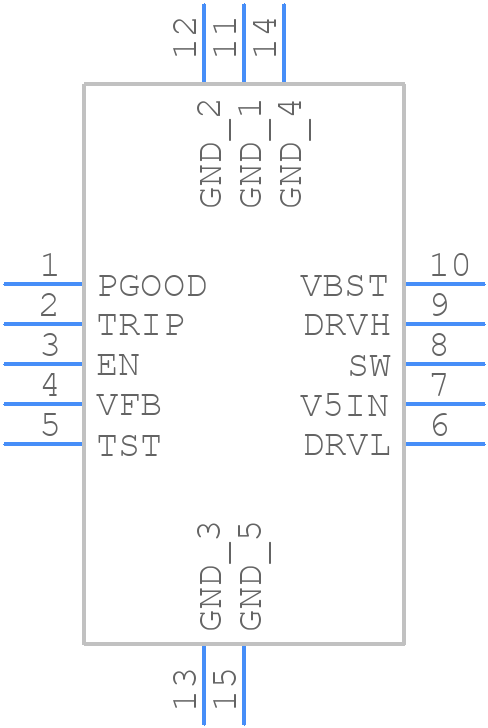

TPS51211DSCR - Texas Instruments

TPS51211DSCR Details

• Manufacturer Part Number:

  TPS51211DSCR

• Brand Name:

  Texas Instruments

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Part Package Code:

  SON

• Pin Count:

  10

• Country Of Origin:

  Malaysia, Philippines

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.90

• Manufacturer:

  Texas Instruments

• YTEOL:

  15

• Additional Feature:

  ALSO OPERATES IN ADJUSTABLE MODE FROM 0.7 TO 2.6V

• Analog IC - Other Type:

  SWITCHING CONTROLLER

• Control Mode:

  VOLTAGE-MODE

• Control Technique:

  PULSE WIDTH MODULATION

• Input Voltage-Max:

  28 V

• Input Voltage-Min:

  3 V

• Input Voltage-Nom:

  8 V

• JESD-30 Code:

  S-PDSO-N10

• JESD-609 Code:

  e4

• Length:

  3 mm

• Moisture Sensitivity Level:

  2

• Number of Functions:

  1

• Number of Outputs:

  1

• Number of Terminals:

  10

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Output Current-Max:

  18 A

• Output Voltage-Max:

  2.6 V

• Output Voltage-Min:

  0.7 V

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  HVSON

• Package Equivalence Code:

  SOLCC10,.12,20

• Package Shape:

  SQUARE

• Package Style:

  SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

• Peak Reflow Temperature (Cel):

  260

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  0.8 mm

• Supply Current-Max (Isup):

  0.5 mA

• Supply Voltage-Nom (Vsup):

  5 V

• Surface Mount:

  YES

• Switcher Configuration:

  BUCK

• Switching Frequency-Max:

  314 kHz

• Technology:

  BICMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  Nickel/Palladium/Gold (Ni/Pd/Au)

• Terminal Form:

  NO LEAD

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  3 mm
