Texas Instruments provides a recommended PCB layout in the TPS51220 datasheet, but it's essential to follow good PCB design practices, such as keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing trace lengths and widths to reduce EMI and noise.
Choose input capacitors with low ESR (Equivalent Series Resistance) and high ripple current rating to minimize voltage ripple and ensure stable operation. For output capacitors, select ones with low ESR and high capacitance to reduce output voltage ripple and improve transient response. Refer to the datasheet for specific capacitor recommendations.
The TPS51220ATRTVRQ1 is rated for operation up to 105°C ambient temperature, but it's essential to consider the junction temperature (TJ) and ensure it stays within the recommended range (–40°C to 150°C) to maintain reliability and prevent thermal shutdown.
The TPS51220ATRTVRQ1 has built-in OCP and SCP features. To implement these features, connect the OCP pin to a resistor divider network that sets the current limit, and ensure the SCP pin is connected to a capacitor to set the short-circuit detection time. Refer to the datasheet for specific implementation details.
The TPS51220ATRTVRQ1 is designed to operate with input voltages between 2.7V and 5.5V. Operating within this range ensures optimal performance, efficiency, and reliability. However, the device can tolerate input voltages up to 6V for short durations, but this may affect performance and reliability.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS51220ATRTVRQ1 Overview

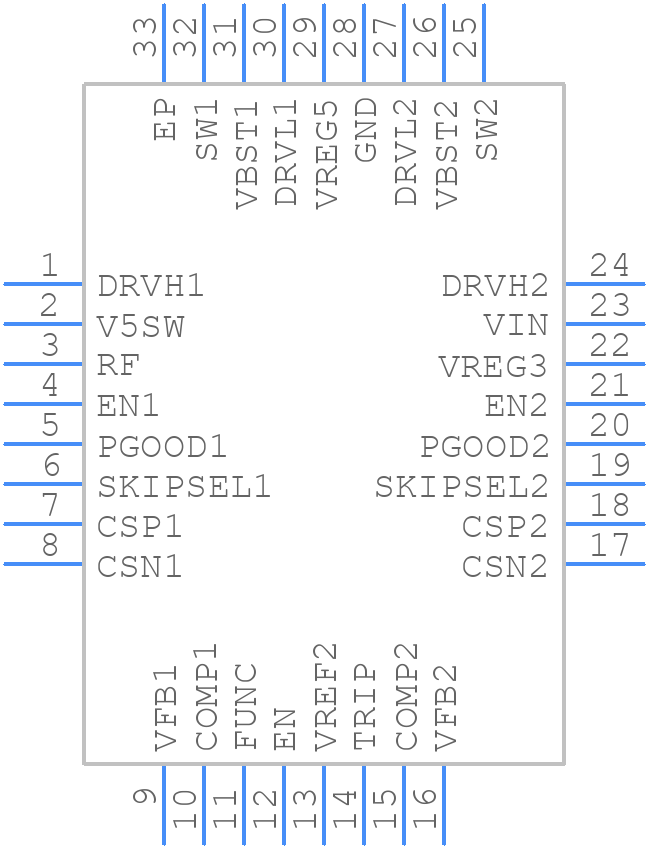

Use the download button to access the TPS51220ATRTVRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS51,
or try a keyword search, such as Switching Regulator or Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
