Texas Instruments provides a recommended PCB layout in the datasheet, but it's also important to follow general best practices for switching regulator layout, such as keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing trace lengths and widths to reduce EMI.
The selection of the inductor depends on the specific application requirements, such as the output voltage, current, and frequency. Texas Instruments provides a list of recommended inductors in the datasheet, but engineers can also use the TI Inductor Selection Tool to find a suitable inductor. Key parameters to consider include inductance value, DC resistance, and saturation current.
The TPS51220RHBT has a maximum ambient operating temperature of 85°C, but it's important to consider the junction temperature (TJ) which is the temperature of the IC itself. The maximum TJ is 125°C, and engineers should ensure that the IC is properly cooled to prevent overheating.
Yes, the TPS51220RHBT is qualified for automotive and high-reliability applications. It meets the requirements of the AEC-Q100 standard for automotive applications and is also suitable for industrial and medical applications that require high reliability.
Texas Instruments provides a troubleshooting guide in the datasheet, which covers common issues and their solutions. Engineers can also use TI's Power Management Troubleshooting Guide, which provides a step-by-step approach to identifying and resolving issues. Additionally, TI's online forums and support resources can be a valuable resource for troubleshooting and design support.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS51220RHBT Overview

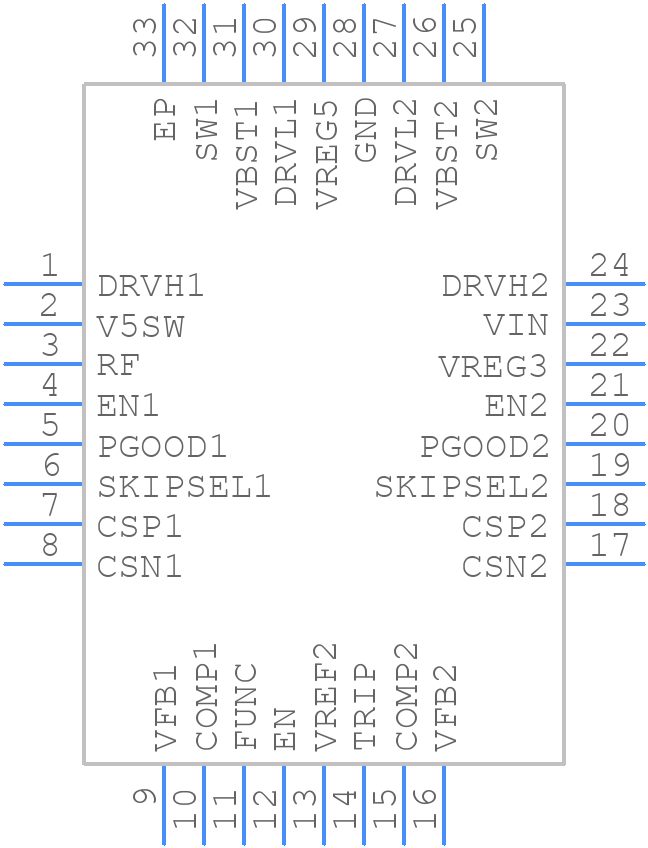

Use the download button to access the TPS51220RHBT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS51,
or try a keyword search, such as Switching Regulator or Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
