TPS51225RUKR - Texas Instruments

Description: Dual Synchronous Step-Down Controller with 5-V and 3.3-V LDOs

Download TPS51225RUKR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

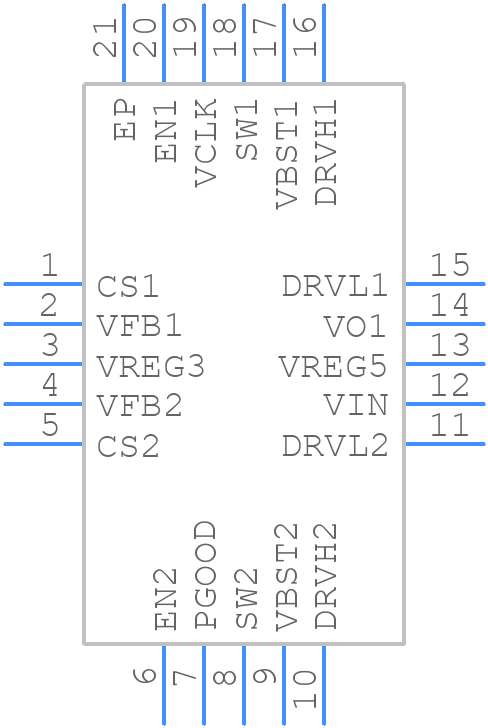

TPS51225RUKR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS51225RUKR - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RUK (S-PWQFN-N20)
click to zoom
3D Models
TPS51225RUKR - Texas Instruments - 3D model - Quad Flat No-Lead - RUK (S-PWQFN-N20)
click to zoom

TPS51225RUKR Details

  • Manufacturer Part Number:

    TPS51225RUKR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Pin Count:

    20

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    DUAL SWITCHING CONTROLLER

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    24 V

  • Input Voltage-Min:

    5.5 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    S-PQCC-N20

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    2

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    10 A

  • Output Voltage-Max:

    5.5 V

  • Output Voltage-Min:

    4.5 V

  • Output Voltage-Nom:

    3.3 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    355 kHz

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

TPS51225RUKR Frequently Asked Questions (FAQs)

  • A good PCB layout for the TPS51225RUKR involves placing the input capacitors close to the VIN pin, using a solid ground plane, and keeping the high-current paths short and wide. TI provides a recommended layout in the datasheet and application notes.
  • Choose input capacitors with low ESR and high ripple current rating. For output capacitors, choose ones with low ESR and high capacitance. The datasheet provides guidelines for capacitor selection, and TI's capacitor selection tool can also be used.
  • The TPS51225RUKR has an operating junction temperature range of -40°C to 150°C, but the maximum ambient temperature range depends on the specific application and thermal design. Typically, it's recommended to keep the ambient temperature below 85°C.
  • The TPS51225RUKR has a built-in overcurrent protection feature. To implement it, connect a sense resistor in series with the output, and connect the sense resistor to the OCSET pin. The datasheet provides more details on how to set the overcurrent threshold.
  • Yes, the TPS51225RUKR can be used in a synchronous buck configuration. However, it requires an external FET driver and a low-side FET. TI provides application notes and reference designs for synchronous buck configurations.
