Texas Instruments provides a recommended PCB layout in the datasheet, but it's also important to follow general guidelines for thermal design, such as placing thermal vias under the device, using a solid ground plane, and keeping the thermal path short and direct.
The selection of input and output capacitors depends on the specific application requirements, such as ripple current, voltage rating, and ESR. TI provides guidelines for capacitor selection in the datasheet, but it's also important to consider the capacitor's physical size, cost, and reliability.
The maximum ambient temperature for the TPS51275B-1RUKR is 85°C, but it's important to note that the device's junction temperature (TJ) should not exceed 125°C. The ambient temperature should be derated based on the device's power dissipation and thermal resistance.
The TPS51275B-1RUKR has a built-in OVP feature that can be enabled by connecting the OVP pin to a voltage source. The OVP threshold can be set by selecting the appropriate resistor value. TI provides more information on OVP implementation in the datasheet and application notes.
The recommended input voltage range for the TPS51275B-1RUKR is 2.7V to 5.5V, but it's important to note that the device can operate down to 2.3V with reduced performance. The input voltage should be carefully selected based on the specific application requirements and the device's power dissipation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS51275B-1RUKR Overview

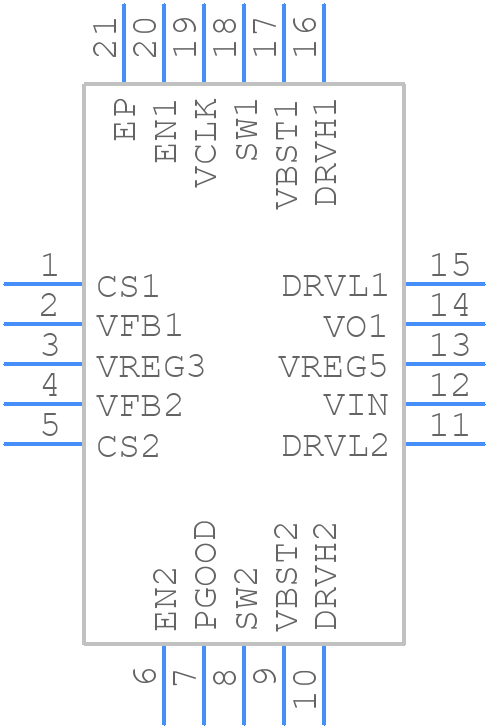

Use the download button to access the TPS51275B-1RUKR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS51,
or try a keyword search, such as Switching Regulator or Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
