ALSO REQ SUPPLY V5 FROM 4.6 TO 5.5 V; OUTPUT VOLTAGE RANGE FROM -0.1 TO 5.5V
Analog IC - Other Type:
SWITCHING REGULATOR
Control Mode:
VOLTAGE-MODE
Control Technique:
PULSE WIDTH MODULATION
Input Voltage-Max:
22 V
Input Voltage-Min:
3 V
Input Voltage-Nom:
12 V
JESD-30 Code:
R-PQCC-N28
JESD-609 Code:
e4
Length:
4.5 mm
Moisture Sensitivity Level:
2
Number of Functions:
1
Number of Outputs:
1
Number of Terminals:
28
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-10 °C
Output Current-Max:
10 A
Output Voltage-Max:
2 V
Output Voltage-Min:
0.6 V
Package Body Material:
PLASTIC/EPOXY
Package Code:
HVQCCN
Package Equivalence Code:
LCC28,.14X.18,16
Package Shape:
RECTANGULAR
Package Style:
CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Seated Height-Max:
1 mm
Supply Voltage-Nom (Vsup):
12 V
Surface Mount:
YES
Switcher Configuration:
BUCK
Switching Frequency-Max:
800 kHz
Technology:
BICMOS
Temperature Grade:
OTHER
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
NO LEAD
Terminal Pitch:
0.4 mm
Terminal Position:
QUAD
Time@Peak Reflow Temperature-Max (s):
30
Width:
3.5 mm
TPS51363RVET Frequently Asked Questions (FAQs)
Texas Instruments provides a recommended PCB layout in the datasheet, but it's also important to follow general best practices for switching regulator layout, such as keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing trace lengths and widths.
The selection of the inductor depends on the specific requirements of your application, such as the output current, switching frequency, and desired ripple current. TI provides an inductor selection guide in the datasheet, and you can also use online tools such as the TI Inductor Selection Tool to help with the selection process.
The maximum ambient temperature that the TPS51363RVET can operate at is 85°C, but this can be derated based on the specific application and the power dissipation of the device. It's also important to consider the junction temperature of the device, which should not exceed 150°C.
Yes, the TPS51363RVET is qualified for automotive and high-reliability applications, and it meets the requirements of the AEC-Q100 standard. However, it's still important to follow proper design and testing procedures to ensure the reliability and performance of the device in your specific application.
TI provides a troubleshooting guide in the datasheet, which covers common issues and their possible causes. You can also use tools such as an oscilloscope and a thermal camera to help diagnose the issue. Additionally, TI offers technical support and resources, such as the TI E2E forum, where you can ask questions and get help from experts.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS51363RVET Overview

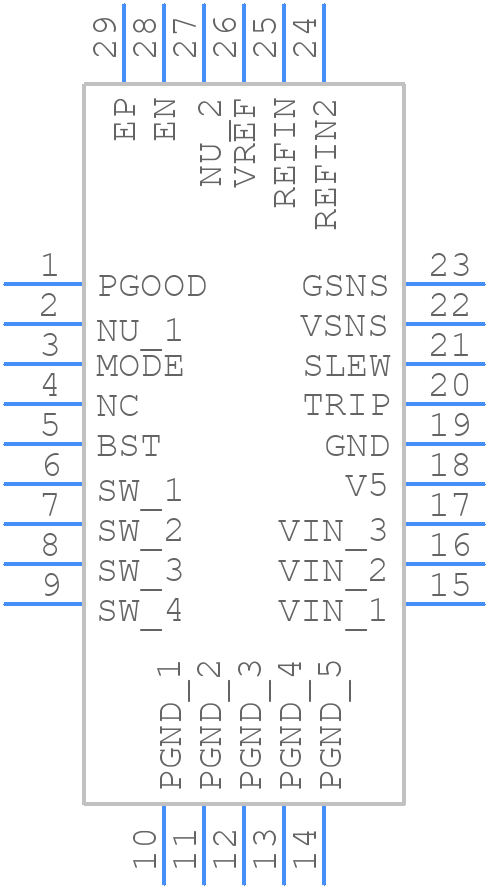

Use the download button to access the TPS51363RVET schematic symbol, PCB footprint, and 3D model.
