TPS51383RJNR - Texas Instruments

Description: Buck Switching Regulator IC Positive Fixed 3.36V 1 Output 8A 12-PowerVFQFN

Download TPS51383RJNR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

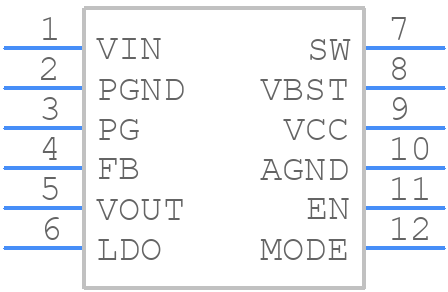

TPS51383RJNR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS51383RJNR - Texas Instruments PCB footprint - Other - Other - RJN0012A
click to zoom
3D Models
TPS51383RJNR - Texas Instruments - 3D model - Other - RJN0012A
click to zoom

TPS51383RJNR Details

  • Manufacturer Part Number:

    TPS51383RJNR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    SWITCHED CAPACITOR REGULATOR

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    24 V

  • Input Voltage-Min:

    4.5 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    R-XQCC-N12

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    12

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    8 A

  • Output Voltage-Max:

    3.36 V

  • Output Voltage-Min:

    3.36 V

  • Output Voltage-Nom:

    3.36 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    QCCN

  • Package Equivalence Code:

    LCC12(UNSPEC)

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    720 kHz

  • Technology:

    BICMOS

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2 mm

TPS51383RJNR Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow general high-frequency PCB design guidelines, such as using a solid ground plane, minimizing trace lengths, and using vias to connect layers. Additionally, it's recommended to place the input and output capacitors close to the device and to use a Kelvin connection for the sense lines.
  • The selection of input and output capacitors depends on the specific application requirements. In general, low-ESR capacitors with high ripple current ratings are recommended. The input capacitor should be able to handle the input voltage ripple and the output capacitor should be able to handle the output voltage ripple. The datasheet provides some guidance on capacitor selection, but it's recommended to consult with capacitor manufacturers for specific recommendations.
  • The maximum ambient temperature for reliable operation is 85°C, but it's recommended to derate the device's performance at higher temperatures. The datasheet provides a thermal derating curve that shows the maximum output current at different ambient temperatures.
  • The TPS51383RJNR has built-in OVP and UVP, but it's recommended to implement external OVP and UVP circuits for added protection. This can be done using external voltage comparators and resistors to detect overvoltage and undervoltage conditions and to shut down the device accordingly.
  • The recommended input voltage range for optimal performance is 2.7V to 5.5V, but the device can operate from 2.3V to 5.5V. Operating outside the recommended range may affect the device's performance and efficiency.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TPS51383RJNR Overview

Use the download button to access the TPS51383RJNR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS51, or try a keyword search, such as Switching Regulator or Controllers

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
