TPS51396ARJER - Texas Instruments

Description: Buck Switching Regulator IC Positive Adjustable 0.6V 1 Output 8A 20-PowerVFQFN , Surface mount , 4.5 V to 24 V , -40 °C ~ +125 °C (TJ)

Download TPS51396ARJER Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

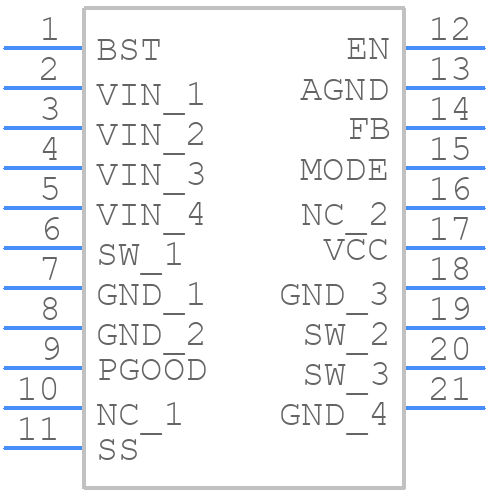

Symbol
TPS51396ARJER - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS51396ARJER - Texas Instruments PCB footprint - Other - Other - RJE0020A_2026-1
click to zoom
3D Models
TPS51396ARJER - Texas Instruments - 3D model - Other - RJE0020A_2026-1
click to zoom

TPS51396ARJER Details

  • Manufacturer Part Number:

    TPS51396ARJER

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    VOLTAGE-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    24 V

  • Input Voltage-Min:

    4.5 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    S-XQCC-N20

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    8 A

  • Output Voltage-Max:

    7 V

  • Output Voltage-Min:

    0.6 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC20(UNSPEC)

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    1000 kHz

  • Technology:

    BICMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.45 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

TPS51396ARJER Frequently Asked Questions (FAQs)

  • A good PCB layout for the TPS51396ARJER involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the input and output traces. TI provides a recommended PCB layout in the datasheet and application notes.
  • To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Also, ensure that the output capacitor has a low ESR and is properly sized for the output current. Additionally, consider adding a small ceramic capacitor (e.g., 10nF) in parallel with the output capacitor to improve stability.
  • The TPS51396ARJER can handle input voltages up to 18V, but it's recommended to keep the input voltage below 15V for optimal performance and reliability.
  • The TPS51396ARJER is rated for operation up to 125°C, but its performance and reliability may degrade at high temperatures. Ensure that your design takes into account the thermal characteristics of the device and the surrounding environment.
  • Start by checking the input voltage, output voltage, and current. Verify that the device is properly powered and that the output is not overloaded. Check for any signs of overheating or physical damage. Consult the datasheet and application notes for troubleshooting guidelines and consider using TI's WEBENCH design tool for simulation and analysis.
