ALSO OPERATES AT 5V, OPERATES IN ADJUSTABLE MODE FROM 0.7V TO 4.5V
Analog IC - Other Type:
DUAL SWITCHING CONTROLLER
Control Mode:
VOLTAGE-MODE
Control Technique:
PULSE WIDTH MODULATION
Input Voltage-Max:
28 V
Input Voltage-Min:
5.5 V
Input Voltage-Nom:
5 V
JESD-30 Code:
S-PQCC-N32
JESD-609 Code:
e4
Length:
5 mm
Moisture Sensitivity Level:
2
Number of Functions:
1
Number of Outputs:
2
Number of Terminals:
32
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Output Current-Max:
20 A
Output Voltage-Max:
5.9 V
Output Voltage-Min:
0.7 V
Output Voltage-Nom:
3.3 V
Package Body Material:
PLASTIC/EPOXY
Package Code:
HVQCCN
Package Shape:
SQUARE
Package Style:
CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Seated Height-Max:
1 mm
Supply Current-Max (Isup):
0.01 mA
Surface Mount:
YES
Switcher Configuration:
BUCK
Switching Frequency-Max:
500 kHz
Technology:
BICMOS
Temperature Grade:
INDUSTRIAL
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
NO LEAD
Terminal Pitch:
0.5 mm
Terminal Position:
QUAD
Time@Peak Reflow Temperature-Max (s):
30
Width:
5 mm
TPS51427ARHBR Frequently Asked Questions (FAQs)
Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow good PCB design practices, such as keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing trace lengths and widths to reduce EMI and noise.
Choose input capacitors with low ESR (Equivalent Series Resistance) and high ripple current ratings. For output capacitors, select ones with low ESR, high capacitance, and a voltage rating that meets or exceeds the output voltage. Refer to the datasheet for specific recommendations and calculations.
The TPS51427ARHBR is rated for operation up to 85°C ambient temperature. However, it's essential to consider the junction temperature (TJ) and ensure it stays within the recommended range (–40°C to 150°C) to maintain reliability and prevent thermal shutdown.
The TPS51427ARHBR has built-in OCP and SCP features. To implement them, connect the OCP pin to a resistor divider network that sets the current limit, and ensure the SCP pin is connected to a capacitor that sets the short-circuit detection time. Refer to the datasheet for specific implementation details and calculations.
The recommended input voltage range for the TPS51427ARHBR is 2.7V to 5.5V. Operating outside this range may affect performance, efficiency, or reliability. Ensure the input voltage is within the recommended range to achieve optimal performance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS51427ARHBR Overview

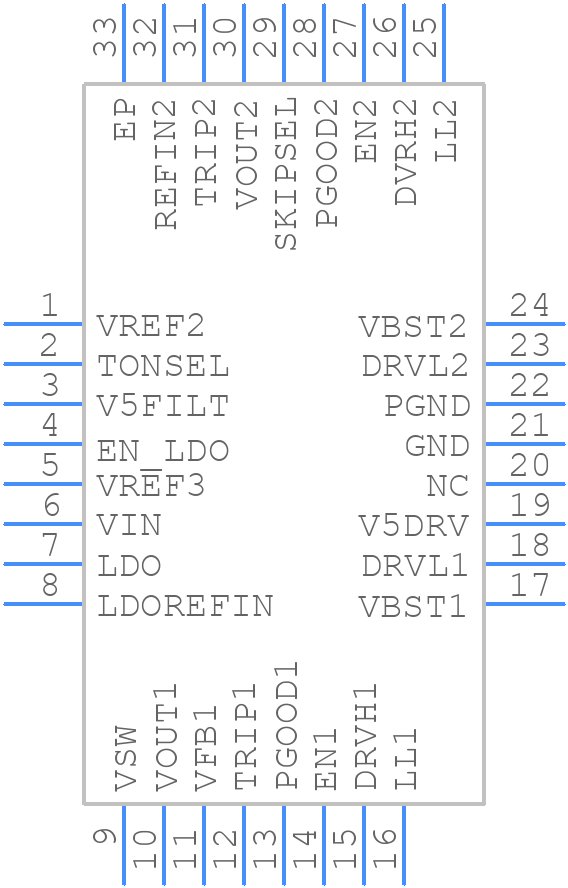

Use the download button to access the TPS51427ARHBR schematic symbol, PCB footprint, and 3D model.
