Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow general high-frequency PCB design guidelines, such as keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing trace lengths and widths.
The selection of input and output capacitors depends on the specific application requirements, such as the input voltage range, output voltage, and ripple current. Texas Instruments provides guidelines for capacitor selection in the datasheet, but it's also recommended to consult with capacitor manufacturers and perform simulations to ensure the chosen capacitors meet the requirements.
The TPS51462RGET is rated for operation from -40°C to 125°C, but the maximum ambient temperature range may be limited by the specific application and the thermal design of the system. It's recommended to consult with Texas Instruments or a thermal expert to determine the maximum ambient temperature range for a specific application.
Proper thermal management is critical for the TPS51462RGET. This can be achieved by providing a sufficient heat sink, using thermal interface materials, and ensuring good airflow around the device. Texas Instruments provides thermal design guidelines in the datasheet, and it's also recommended to consult with thermal experts or perform thermal simulations to ensure the device is properly thermally managed.
The recommended input voltage range for the TPS51462RGET is 2.7V to 5.5V, but the device can operate from 2.3V to 5.5V. However, the output voltage and current capabilities may be reduced at lower input voltages. It's recommended to consult with Texas Instruments or perform simulations to determine the optimal input voltage range for a specific application.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
TPS51462RGET Overview

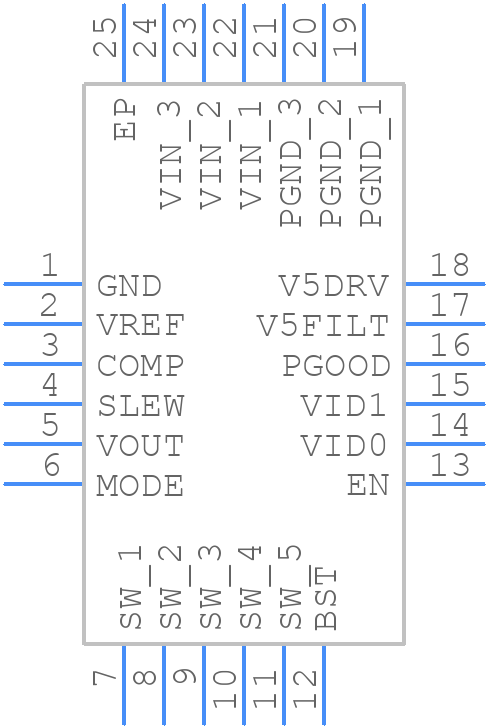

Use the download button to access the TPS51462RGET schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS51,
or try a keyword search, such as Switching Regulator or Controllers
