Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow good PCB design practices, such as keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing trace lengths and widths to reduce EMI and noise.
The choice of input and output capacitors depends on the specific application requirements. Generally, low-ESR capacitors with a high ripple current rating are recommended. The datasheet provides guidelines for capacitor selection, but it's essential to consider factors like voltage rating, capacitance value, and physical size.
The TPS51513RHBT is rated for operation up to 125°C, but it's essential to consider the thermal design and heat dissipation in the system to ensure reliable operation. A good thermal design can help reduce the junction temperature and increase the overall reliability.
The TPS51513RHBT has built-in OVP and UVP features, but it's essential to understand the threshold levels and hysteresis to ensure proper operation. Additionally, external protection circuits may be required depending on the specific application requirements.
The recommended input voltage range for the TPS51513RHBT is 4.5V to 18V, but it's essential to consider the specific application requirements and ensure that the input voltage is within the recommended range to maintain optimal performance and efficiency.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
TPS51513RHBT Overview

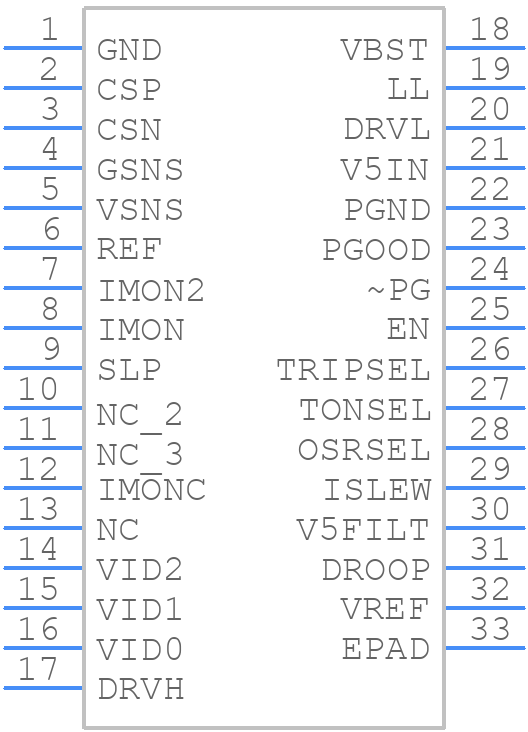

Use the download button to access the TPS51513RHBT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS51,
or try a keyword search, such as Switching Regulator or Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
