Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow general high-frequency PCB design guidelines, such as using a solid ground plane, minimizing trace lengths, and using vias to connect the input and output capacitors to the ground plane.
The selection of input and output capacitors depends on the specific application requirements. In general, low-ESR capacitors with high ripple current ratings are recommended. The datasheet provides guidelines for capacitor selection, but it's also recommended to consult the capacitor manufacturer's datasheet and application notes.
The TPS51727RHAT is rated for operation up to 105°C ambient temperature, but the maximum ambient temperature for reliable operation depends on the specific application and the thermal design of the system. It's recommended to follow the thermal design guidelines in the datasheet and to perform thermal simulations to ensure reliable operation.
The TPS51727RHAT has a built-in overcurrent protection feature, but it's recommended to implement additional overcurrent protection using external components, such as a current sense resistor and a comparator, to provide additional protection against overcurrent conditions.
The recommended input voltage range for optimal performance is 2.7V to 5.5V, but the device can operate with input voltages as low as 2.3V. However, the output voltage regulation and efficiency may be affected at lower input voltages.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS51727RHAT Overview

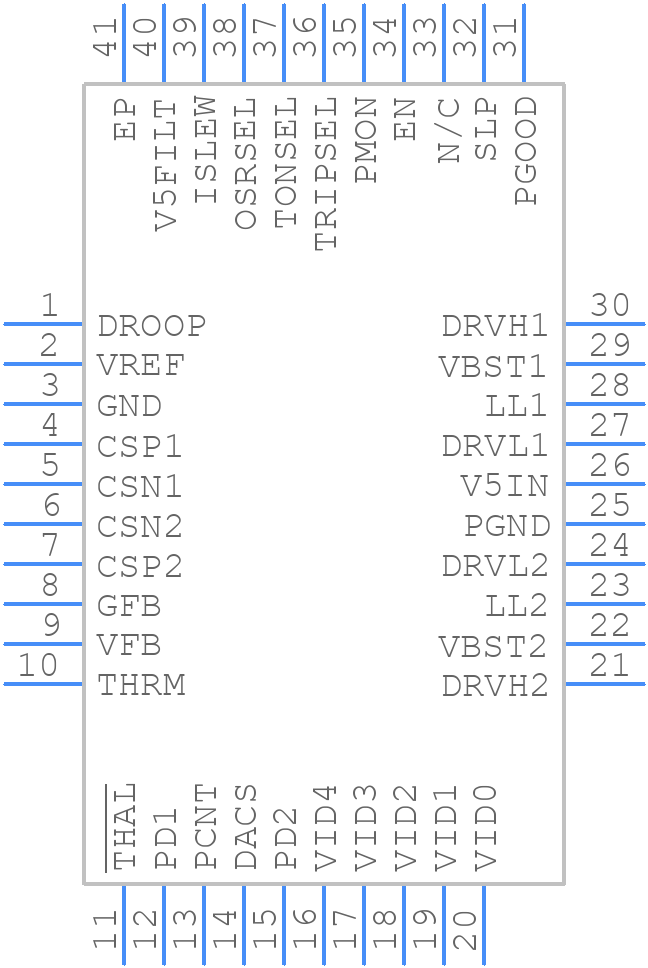

Use the download button to access the TPS51727RHAT schematic symbol, PCB footprint, and 3D model.
