Part Image

TPS53014DGS - Texas Instruments

Description: Switching Controllers Sgl Sync SD Cntrlr

Download TPS53014DGS Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

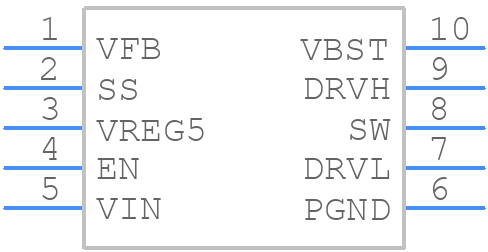

Symbol
TPS53014DGS - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS53014DGS - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DGS (S-PDSO-G10)
click to zoom
3D Models
TPS53014DGS - Texas Instruments - 3D model - Small Outline Packages - DGS (S-PDSO-G10)
click to zoom

TPS53014DGS Details

  • Manufacturer Part Number:

    TPS53014DGS

  • Brand Name:

    Texas Instruments

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Additional Feature:

    ALSO OPERATES IN ADJUSTABLE MODE FROM 0.77 TO 7V

  • Analog IC - Other Type:

    SWITCHING CONTROLLER

  • Control Mode:

    VOLTAGE-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    28 V

  • Input Voltage-Min:

    4.5 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    S-PDSO-G10

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    25 A

  • Output Voltage-Max:

    7 V

  • Output Voltage-Min:

    0.76 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP10,.19,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max (Isup):

    0.66 mA

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    500 kHz

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

TPS53014DGS Frequently Asked Questions (FAQs)

  • A good PCB layout for the TPS53014DGS involves placing the input capacitors close to the VIN pin, using a solid ground plane, and keeping the high-current paths short and wide. TI provides a recommended layout in the datasheet and in application notes.
  • Choose an inductor with a high saturation current rating, low DC resistance, and a suitable inductance value. TI provides a list of recommended inductors in the datasheet. You can also use the TI inductor selection tool to find a suitable inductor.
  • The TPS53014DGS has an operating junction temperature range of -40°C to 150°C. However, the maximum ambient temperature range depends on the specific application and the thermal design. A good thermal design can help keep the junction temperature within the specified range.
  • Yes, the TPS53014DGS is qualified for automotive and high-reliability applications. It meets the AEC-Q100 standard for automotive applications and is suitable for use in high-reliability systems.
  • To troubleshoot issues with the TPS53014DGS, start by checking the PCB layout, component values, and soldering quality. Use an oscilloscope to measure the output voltage and current, and check for signs of oscillation or instability. Consult the datasheet and application notes for troubleshooting guidelines.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TPS53014DGS Overview

Use the download button to access the TPS53014DGS schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS53, or try a keyword search, such as Switching Regulator or Controllers
