ALSO OPERATES IN ADJUSTABLE MODE FROM 0.76V TO 5.5V
Analog IC - Other Type:
SWITCHING CONTROLLER
Control Mode:
VOLTAGE-MODE
Control Technique:
PULSE WIDTH MODULATION
Input Voltage-Max:
24 V
Input Voltage-Min:
4.5 V
Input Voltage-Nom:
12 V
JESD-30 Code:
R-PDSO-G16
JESD-609 Code:
e4
Length:
5 mm
Moisture Sensitivity Level:
1
Number of Functions:
1
Number of Outputs:
1
Number of Terminals:
16
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Output Current-Max:
15 A
Output Voltage-Max:
5.5 V
Output Voltage-Min:
0.76 V
Output Voltage-Nom:
5 V
Package Body Material:
PLASTIC/EPOXY
Package Code:
TSSOP
Package Equivalence Code:
TSSOP16,.25
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Seated Height-Max:
1.2 mm
Supply Current-Max (Isup):
0.6 mA
Surface Mount:
YES
Switcher Configuration:
BUCK
Switching Frequency-Max:
700 kHz
Technology:
BICMOS
Temperature Grade:
INDUSTRIAL
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
0.65 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Width:
4.4 mm
TPS53114PW Frequently Asked Questions (FAQs)
Texas Instruments provides a recommended PCB layout in the datasheet, but it's also important to follow general best practices for switching regulator layout, such as keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing trace lengths and widths.
The selection of the inductor depends on the output current, switching frequency, and output voltage ripple requirements. TI provides an inductor selection guide in the datasheet, and online tools such as the TI Inductor Selection Tool can also be used to find a suitable inductor.
The TPS53114PW has a maximum ambient operating temperature of 85°C, but the junction temperature (TJ) should not exceed 125°C. The device's thermal performance can be improved by using a heat sink or a thermally enhanced package.
Yes, the TPS53114PW is qualified for automotive and high-reliability applications, and meets the requirements of the AEC-Q100 standard. However, additional testing and validation may be required to ensure compliance with specific industry standards.
TI provides a troubleshooting guide in the datasheet, which covers common issues and their solutions. Additionally, online resources such as the TI E2E forum and application notes can provide further guidance and support.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
TPS53114PW Overview

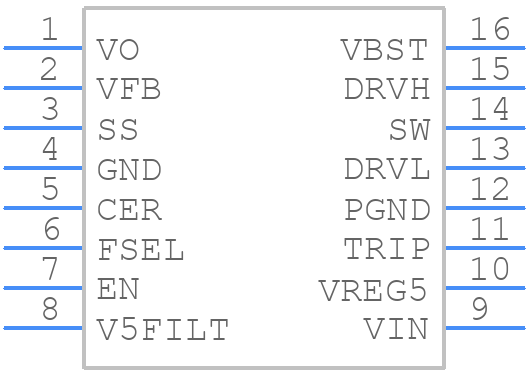

Use the download button to access the TPS53114PW schematic symbol, PCB footprint, and 3D model.
