ALSO OPERATES IN ADJUSTABLE MODE FROM 0.76V TO 5.5V
Analog IC - Other Type:
SWITCHING CONTROLLER
Control Mode:
VOLTAGE-MODE
Control Technique:
PULSE WIDTH MODULATION
Input Voltage-Max:
24 V
Input Voltage-Min:
4.5 V
Input Voltage-Nom:
12 V
JESD-30 Code:
R-PDSO-G16
JESD-609 Code:
e4
Length:
5 mm
Moisture Sensitivity Level:
2
Number of Functions:
1
Number of Outputs:
1
Number of Terminals:
16
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Output Current-Max:
15 A
Output Voltage-Max:
5.5 V
Output Voltage-Min:
0.76 V
Output Voltage-Nom:
5 V
Package Body Material:
PLASTIC/EPOXY
Package Code:
HTSSOP
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Seated Height-Max:
1.2 mm
Supply Current-Max (Isup):
600 mA
Surface Mount:
YES
Switcher Configuration:
BUCK
Switching Frequency-Max:
700 kHz
Technology:
BICMOS
Temperature Grade:
INDUSTRIAL
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
0.65 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Width:
4.4 mm
TPS53114PWP Frequently Asked Questions (FAQs)
Texas Instruments provides a recommended PCB layout in the datasheet (Figure 23) and in the TPS53114PWP Evaluation Module User's Guide (SLUU444). It's essential to follow these guidelines to minimize noise, ensure proper thermal performance, and optimize the device's operation.
The input capacitor values depend on the input voltage, output voltage, and desired output ripple. TI recommends using X7R or X5R ceramic capacitors with a minimum capacitance of 10uF and a voltage rating of at least 1.5 times the maximum input voltage. Refer to the datasheet (Section 8.2.2) for more information.
The maximum output current capability of the TPS53114PWP is 1.4A. However, the actual output current capability may be limited by the thermal performance of the device, PCB layout, and ambient temperature. Refer to the datasheet (Section 6.3) for thermal derating information.
The TPS53114PWP has a built-in OCP and SCP feature. To implement OCP, connect a resistor (RILIM) between the ILIM pin and GND to set the current limit threshold. For SCP, connect a resistor (RSCP) between the SCP pin and GND to set the short-circuit detection threshold. Refer to the datasheet (Section 8.3.3) for more information.
The EN (Enable) pin is used to enable or disable the device. When EN is high, the device is enabled, and when EN is low, the device is disabled. The EN pin can be connected to a logic signal or a power-good signal to control the device's operation. Refer to the datasheet (Section 8.3.1) for more information.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
TPS53114PWP Overview

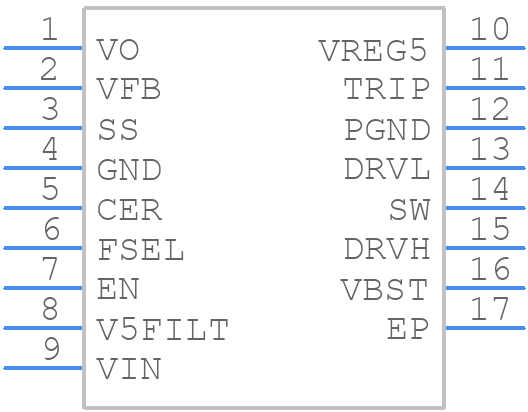

Use the download button to access the TPS53114PWP schematic symbol, PCB footprint, and 3D model.
