TPS53119RGTR - Texas Instruments

Description: DC/DC Cntrlr Single-OUT Step Down 1070kHz 16-Pin VQFN EP T/R

Download TPS53119RGTR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

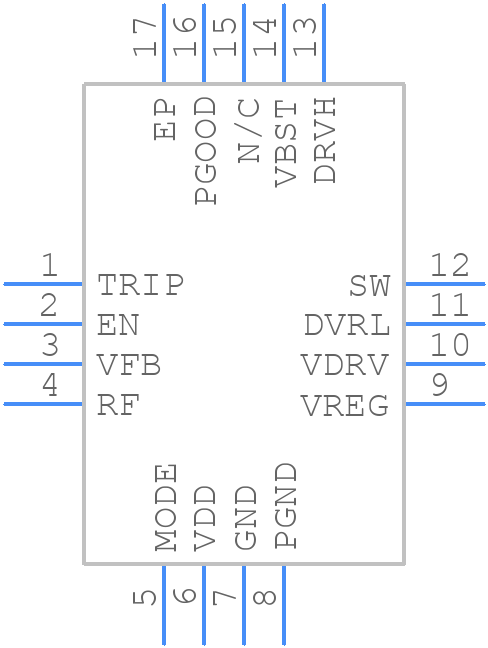

TPS53119RGTR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS53119RGTR - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RGT0016A_2021
click to zoom
3D Models
TPS53119RGTR - Texas Instruments - 3D model - Quad Flat No-Lead - RGT0016A_2021
click to zoom

TPS53119RGTR Details

  • Manufacturer Part Number:

    TPS53119RGTR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Date Of Intro:

    2017-12-09

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    SWITCHING CONTROLLER

  • Control Mode:

    VOLTAGE-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    25 V

  • Input Voltage-Min:

    4.5 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    S-PQCC-N16

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -20 °C

  • Output Current-Max:

    20 A

  • Output Voltage-Max:

    5.5 V

  • Output Voltage-Min:

    0.6 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC16,.12SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Supply Current-Max (Isup):

    0.59 mA

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    1070 kHz

  • Technology:

    BICMOS

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

TPS53119RGTR Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the TPS53119RGTR datasheet (section 10.2) and in the TPS53119RGTR Evaluation Module User's Guide. It's essential to follow these guidelines to minimize noise, ensure proper thermal management, and optimize performance.
  • The output capacitor selection depends on the output voltage, output current, and desired ripple voltage. TI recommends using a low-ESR capacitor with a minimum capacitance of 10uF and a voltage rating of at least 1.5 times the output voltage. Refer to the datasheet (section 7.3.1) for more information.
  • The absolute maximum input voltage rating for the TPS53119RGTR is 18V. However, the recommended operating input voltage range is 4.5V to 15V. Exceeding the maximum input voltage can damage the device.
  • The TPS53119RGTR has a built-in overcurrent protection feature. To implement OCP, connect a sense resistor (Rs) between the output and GND, and set the OCP threshold voltage (Vocp) using an external resistor divider network. Refer to the datasheet (section 7.3.4) for more information.
  • The TPS53119RGTR has a thermal derating of 1.5°C/W above 25°C. This means that for every 1°C increase in ambient temperature above 25°C, the maximum output current must be derated by 1.5% to prevent overheating.
