ALSO OPERATES IN ADJUSTABLE MODE FROM 0.76V TO 5.5V
Analog IC - Other Type:
DUAL SWITCHING CONTROLLER
Control Mode:
VOLTAGE-MODE
Control Technique:
PULSE WIDTH MODULATION
Input Voltage-Max:
24 V
Input Voltage-Min:
4.5 V
Input Voltage-Nom:
12 V
JESD-30 Code:
S-PQCC-N24
JESD-609 Code:
e4
Length:
4 mm
Moisture Sensitivity Level:
2
Number of Functions:
1
Number of Outputs:
2
Number of Terminals:
24
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Output Current-Max:
15 A
Output Voltage-Max:
5.5 V
Output Voltage-Min:
0.76 V
Output Voltage-Nom:
5 V
Package Body Material:
PLASTIC/EPOXY
Package Code:
VQCCN
Package Shape:
SQUARE
Package Style:
CHIP CARRIER, VERY THIN PROFILE
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Seated Height-Max:
1 mm
Supply Current-Max (Isup):
0.8 mA
Surface Mount:
YES
Switcher Configuration:
BUCK
Switching Frequency-Max:
350 kHz
Technology:
BICMOS
Temperature Grade:
INDUSTRIAL
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
NO LEAD
Terminal Pitch:
0.5 mm
Terminal Position:
QUAD
Time@Peak Reflow Temperature-Max (s):
30
Width:
4 mm
TPS53124RGER Frequently Asked Questions (FAQs)
TI provides a recommended PCB layout in the datasheet (Figure 23) and in the TPS53124RGER Evaluation Module User's Guide (SLUU444). Follow these guidelines to minimize noise, ensure proper thermal management, and optimize performance.
The input capacitor values depend on the input voltage, output voltage, and desired ripple current. TI recommends using X7R or X5R ceramic capacitors with a minimum capacitance of 10uF and a voltage rating of at least 1.5 times the input voltage. Refer to the datasheet (Section 8.2.2) for more information.
The TPS53124RGER can deliver up to 2A of output current. However, the maximum output current is dependent on the input voltage, output voltage, and thermal conditions. Refer to the datasheet (Section 6.3) for more information on output current capability.
The TPS53124RGER has built-in OCP and SCP features. To implement these features, connect the OCP pin to a resistor divider network that sets the current limit threshold. For SCP, connect the SCP pin to a resistor divider network that sets the short-circuit detection threshold. Refer to the datasheet (Section 8.3.3) for more information.
The EN (Enable) pin is used to enable or disable the regulator. When the EN pin is high, the regulator is enabled, and when it's low, the regulator is disabled. This pin can be used to implement power sequencing, shutdown, or low-power modes. Refer to the datasheet (Section 8.3.1) for more information.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS53124RGER Overview

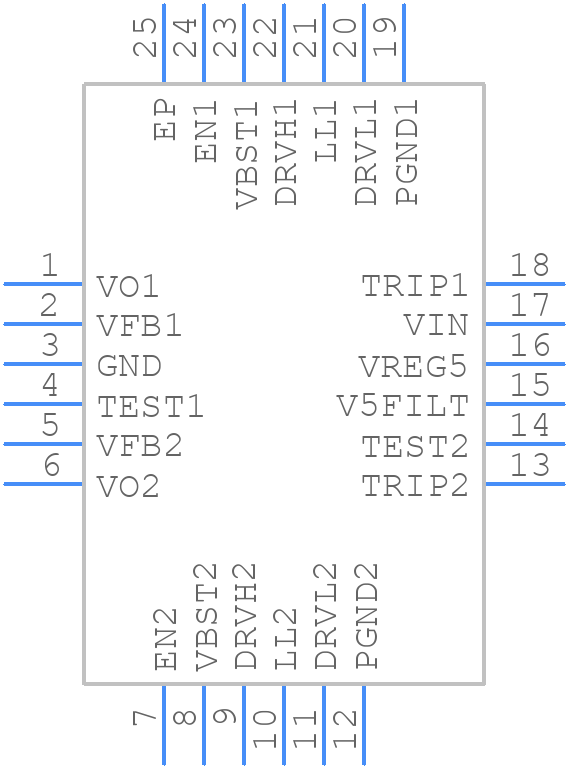

Use the download button to access the TPS53124RGER schematic symbol, PCB footprint, and 3D model.
