TPS53126RGER - Texas Instruments

Description: 4.5 V to 24 V input, selectable 350 or 700 kHz, synchronous DCAP2 mode dual step-down controller

Download TPS53126RGER Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

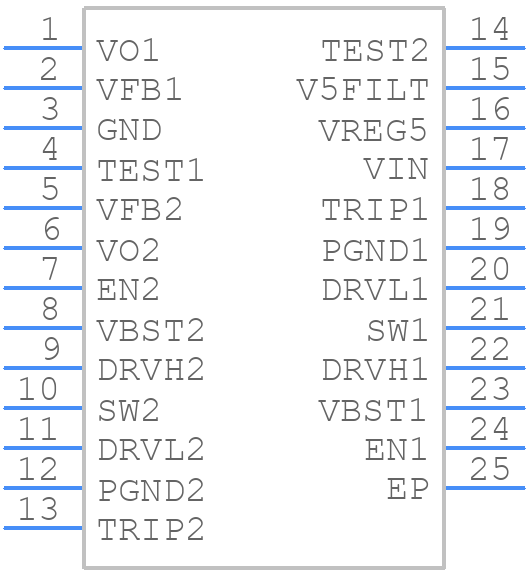

Symbol
TPS53126RGER - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS53126RGER - Texas Instruments PCB footprint - Other - Other - QFN50P400X400X100-25N
click to zoom
3D Models
TPS53126RGER - Texas Instruments - 3D model - Other - QFN50P400X400X100-25N
click to zoom

TPS53126RGER Details

  • Manufacturer Part Number:

    TPS53126RGER

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Pin Count:

    24

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    ALSO OPERATES IN ADJUSTABLE MODE FROM 0.76V TO 5.5V

  • Analog IC - Other Type:

    DUAL SWITCHING CONTROLLER

  • Control Mode:

    VOLTAGE-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    24 V

  • Input Voltage-Min:

    4.5 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    S-PQCC-N24

  • JESD-609 Code:

    e4

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Outputs:

    2

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    15 A

  • Output Voltage-Max:

    5.5 V

  • Output Voltage-Min:

    0.76 V

  • Output Voltage-Nom:

    5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC24,.16SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Current-Max (Isup):

    0.8 mA

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    700 kHz

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

TPS53126RGER Frequently Asked Questions (FAQs)

  • TI provides a recommended PCB layout in the datasheet (Figure 23) and in the TPS53126RGER Evaluation Module User's Guide (SLUU444). Follow these guidelines to minimize noise, ensure proper thermal management, and optimize performance.
  • The input capacitor values depend on the input voltage, output voltage, and desired ripple current. TI recommends using the WEBENCH Power Designer tool or the TPS53126RGER Calculator Tool to determine the optimal input capacitor values for your specific application.
  • The maximum output current capability of the TPS53126RGER is 2.6A. However, the actual output current capability may be limited by the thermal performance of the device, PCB layout, and other system-level factors. Ensure proper thermal management and follow the recommended layout guidelines to achieve the maximum output current.
  • The TPS53126RGER has a built-in OCP and SCP feature. To implement OCP, connect a resistor (RILIM) between the ILIM pin and GND to set the current limit threshold. For SCP, connect a resistor (RSCP) between the SCP pin and GND to set the short-circuit detection threshold. Refer to the datasheet (Section 7.3.5) for more information.
  • The recommended operating temperature range for the TPS53126RGER is -40°C to 125°C. However, the device can operate up to 150°C with derating. Ensure proper thermal management and follow the recommended layout guidelines to maintain optimal performance within the recommended temperature range.

Trust Checks

This model has been verified by system checks.
System Verified
Sponsored

TPS53126RGER Overview

Use the download button to access the TPS53126RGER schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS53, or try a keyword search, such as Switching Regulator or Controllers

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
