ALSO OPERATES IN ADJUSTABLE MODE FROM 0.8 TO 9.8V, ALSO OPERATES AS LDO REGULATOR
Analog IC - Other Type:
SWITCHING CONTROLLER
Control Mode:
VOLTAGE-MODE
Control Technique:
PULSE WIDTH MODULATION
Input Voltage-Max:
14 V
Input Voltage-Min:
4.5 V
Input Voltage-Nom:
12 V
JESD-30 Code:
S-PQCC-N16
JESD-609 Code:
e4
Length:
3 mm
Moisture Sensitivity Level:
1
Number of Functions:
1
Number of Outputs:
1
Number of Terminals:
16
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Output Current-Max:
20 A
Output Voltage-Max:
9.8 V
Output Voltage-Min:
0.8 V
Package Body Material:
PLASTIC/EPOXY
Package Code:
HVQCCN
Package Shape:
SQUARE
Package Style:
CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE
Peak Reflow Temperature (Cel):
260
Seated Height-Max:
1 mm
Surface Mount:
YES
Switcher Configuration:
BUCK
Switching Frequency-Max:
1000 kHz
Technology:
BICMOS
Temperature Grade:
INDUSTRIAL
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
NO LEAD
Terminal Pitch:
0.5 mm
Terminal Position:
QUAD
Time@Peak Reflow Temperature-Max (s):
30
Width:
3 mm
TPS53211RGTR Frequently Asked Questions (FAQs)
A good PCB layout for the TPS53211RGTR involves placing the input capacitors close to the VIN pin, using a solid ground plane, and keeping the high-current paths short and wide. TI provides a recommended layout in the datasheet and application notes.
Choose an inductor with a high saturation current rating, low DC resistance, and a suitable inductance value based on the switching frequency and output voltage. TI provides inductor selection guidelines in the datasheet and application notes.
The TPS53211RGTR is rated for operation from -40°C to 125°C, but the maximum ambient temperature range depends on the specific application and thermal design. Consult the datasheet and thermal design guidelines for more information.
Yes, the TPS53211RGTR is AEC-Q100 qualified and suitable for high-reliability and automotive applications. However, additional testing and validation may be required to ensure compliance with specific industry standards.
Use an oscilloscope to monitor the output voltage, input voltage, and switching node waveforms. Check for proper PCB layout, component selection, and thermal design. Consult the datasheet, application notes, and TI's support resources for troubleshooting guidance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS53211RGTR Overview

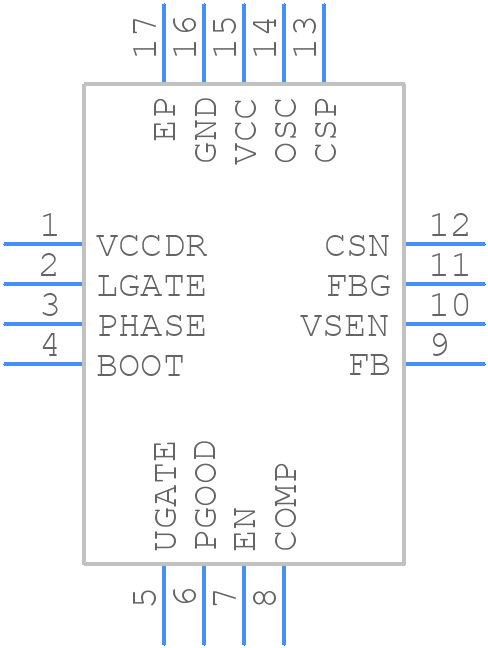

Use the download button to access the TPS53211RGTR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS53,
or try a keyword search, such as Switching Regulator or Controllers
