TPS53316RGTT - Texas Instruments

Description: Texas Instruments TPS53316RGTT, Step Down, Synchronous DC-DC Converter, 5A, Adjustable, 0.6 → 4.8 V, 16-Pin QFN

Download TPS53316RGTT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

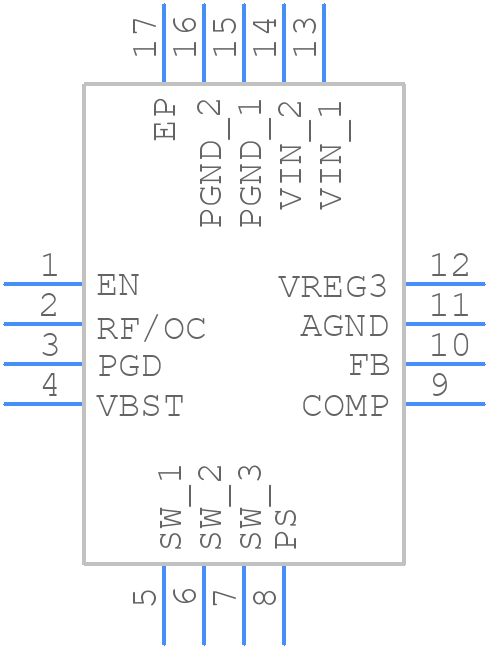

TPS53316RGTT - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS53316RGTT - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RGT
click to zoom
3D Models
TPS53316RGTT - Texas Instruments - 3D model - Quad Flat No-Lead - RGT
click to zoom

TPS53316RGTT Details

  • Manufacturer Part Number:

    TPS53316RGTT

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Pin Count:

    16

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    ALSO OPERATES IN ADJUSTABLE MODE FROM 0.6 TO 4.8V

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    VOLTAGE-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    6 V

  • Input Voltage-Min:

    2.9 V

  • Input Voltage-Nom:

    3.3 V

  • JESD-30 Code:

    S-PQCC-N16

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    5 A

  • Output Voltage-Max:

    5.5 V

  • Output Voltage-Min:

    0.6 V

  • Output Voltage-Nom:

    3.3 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    2000 kHz

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

TPS53316RGTT Frequently Asked Questions (FAQs)

  • A good PCB layout for the TPS53316RGTT involves placing the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the input and output traces. TI provides a recommended PCB layout in the datasheet and in application notes.
  • The choice of input and output capacitors depends on the specific application requirements. TI recommends using low-ESR capacitors with a minimum capacitance of 10uF for the input and output. The capacitor selection guide in the datasheet can help with selecting the right capacitors.
  • The TPS53316RGTT is rated for operation from -40°C to 125°C. However, the device's performance and reliability may degrade at extreme temperatures. It's essential to consider the thermal design and heat dissipation in the system.
  • Yes, the TPS53316RGTT is qualified for automotive and high-reliability applications. It meets the AEC-Q100 standard for automotive applications and is manufactured using a high-reliability process. However, additional testing and validation may be required for specific applications.
  • Troubleshooting the TPS53316RGTT involves checking the input voltage, output voltage, and current, as well as the PCB layout and component selection. TI provides a troubleshooting guide in the datasheet and application notes, which can help identify and resolve common issues.
