TPS53317ARGBR - Texas Instruments

Description: Conv DC-DC 0.9V to 6V Synchronous Step Down Single-Out 0.45V to 2V 6A 20-Pin VQFN EP T/R

Download TPS53317ARGBR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

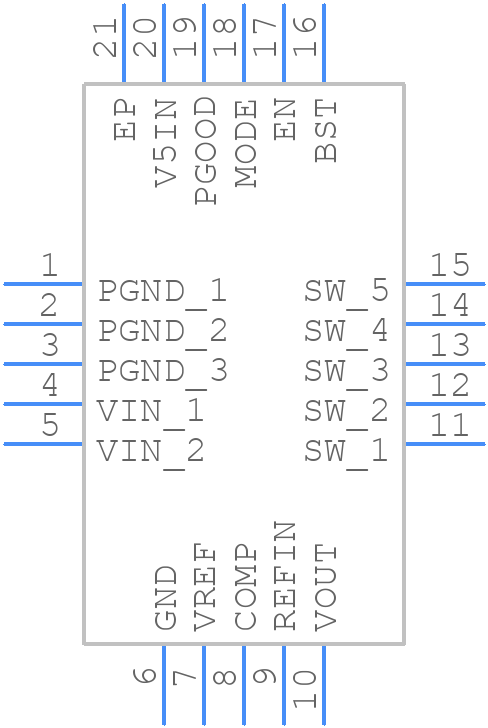

TPS53317ARGBR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS53317ARGBR - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RGB
click to zoom
3D Models
TPS53317ARGBR - Texas Instruments - 3D model - Quad Flat No-Lead - RGB
click to zoom

TPS53317ARGBR Details

  • Manufacturer Part Number:

    TPS53317ARGBR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    ADJUSTABLE OUTPUT VOLATGE RANGE FROM 0.45 TO 2V; ALSO AVAILABEL WITH 4.5 O 5.5 INPUT VOLTAGE RANGE

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    6 V

  • Input Voltage-Min:

    0.9 V

  • Input Voltage-Nom:

    5 V

  • JESD-30 Code:

    R-PQCC-N20

  • JESD-609 Code:

    e4

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage-Max:

    3.6 V

  • Output Voltage-Min:

    -0.3 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    6.5 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    1000 kHz

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.5 mm

TPS53317ARGBR Frequently Asked Questions (FAQs)

  • A good PCB layout for the TPS53317ARGBR involves placing the input capacitors close to the VIN pin, and the output capacitors close to the VOUT pin. The power traces should be wide and short, and the ground plane should be solid and unbroken. A 4-layer PCB with a dedicated ground plane is recommended.
  • The input capacitor should have a voltage rating of at least 1.5 times the maximum input voltage, and a capacitance value of at least 10uF. The output capacitor should have a voltage rating of at least 1.5 times the output voltage, and a capacitance value of at least 22uF. X5R or X7R ceramic capacitors are recommended.
  • The TPS53317ARGBR can operate in an ambient temperature range of -40°C to 125°C. However, the maximum junction temperature is 150°C, and the device should be derated above 85°C to ensure reliable operation.
  • The power dissipation of the TPS53317ARGBR can be calculated using the formula: Pd = (VIN - VOUT) x IOUT x efficiency. The efficiency of the device can be found in the datasheet, and is typically around 95%.
  • The EN (enable) pin is used to turn the device on and off. When the EN pin is high, the device is enabled and operates normally. When the EN pin is low, the device is disabled and the output is turned off.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TPS53317ARGBR Overview

Use the download button to access the TPS53317ARGBR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS53, or try a keyword search, such as Switching Regulator or Controllers
