A good PCB layout for the TPS53321RGTR involves placing the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the input and output traces. TI provides a recommended PCB layout in the datasheet and application notes.
The choice of input and output capacitors depends on the specific application requirements. TI recommends using low-ESR capacitors with a minimum capacitance of 10uF for the input and output. The capacitor selection guide in the datasheet can help with the selection process.
The TPS53321RGTR is rated for operation from -40°C to 125°C. However, the device's performance and reliability may degrade at extreme temperatures. It's essential to consider the thermal design and heat dissipation in the system to ensure reliable operation.
Yes, the TPS53321RGTR is qualified for automotive and high-reliability applications. It meets the AEC-Q100 standard for automotive applications and is suitable for use in harsh environments. However, it's essential to follow the recommended design and testing guidelines to ensure the device meets the specific application requirements.
To troubleshoot issues with the TPS53321RGTR, start by verifying the input voltage, output voltage, and current. Check the PCB layout, component selection, and thermal design. Use oscilloscopes and other diagnostic tools to identify the root cause of the issue. TI also provides application notes and technical support to help with troubleshooting.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS53321RGTR Overview

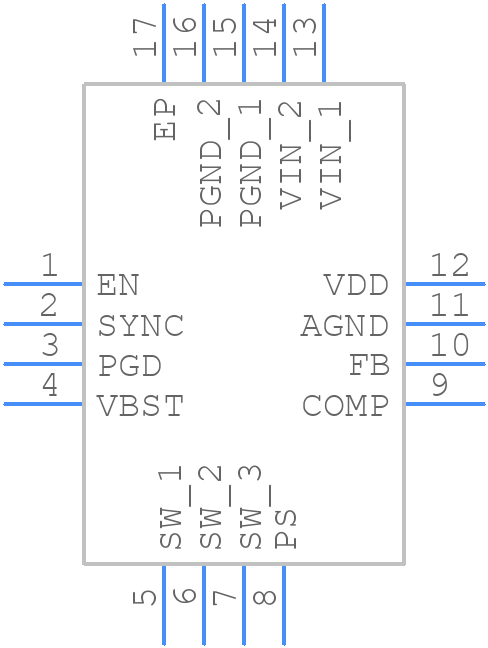

Use the download button to access the TPS53321RGTR schematic symbol, PCB footprint, and 3D model.
