TPS53632RSMT - Texas Instruments

Description: Switching Controllers 3-2-1 Phase DCAP & SD Driverless Cntrlr

Download TPS53632RSMT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

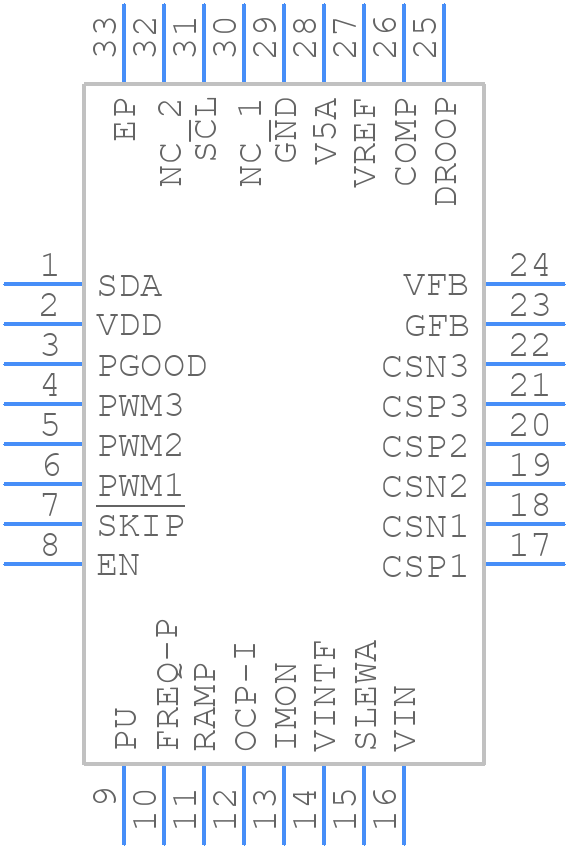

TPS53632RSMT - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS53632RSMT - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RSM0032B
click to zoom
3D Models
TPS53632RSMT - Texas Instruments - 3D model - Quad Flat No-Lead - RSM0032B
click to zoom

TPS53632RSMT Details

  • Manufacturer Part Number:

    TPS53632RSMT

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    DAC OUTPUT RANGE IS 0.50 TO 1.52V

  • Analog IC - Other Type:

    DUAL SWITCHING CONTROLLER

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    24 V

  • Input Voltage-Min:

    2.5 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    S-PQCC-N32

  • JESD-609 Code:

    e4

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -10 °C

  • Output Current-Max:

    90 A

  • Output Voltage-Max:

    1.52 V

  • Output Voltage-Min:

    0.5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Supply Current-Max (Isup):

    6 mA

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    1000 kHz

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

TPS53632RSMT Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the TPS53632RSMT datasheet (Section 10.2) and in the TPS53632RSMT Evaluation Module User's Guide (SLUU444). It's essential to follow these guidelines to minimize noise, ensure proper thermal management, and optimize performance.
  • The selection of input and output capacitors depends on the specific application requirements. TI recommends using low-ESR capacitors with a minimum capacitance of 10uF for the input and 22uF for the output. The capacitor selection guide (SLUA773) and the TPS53632RSMT datasheet (Section 7.3) provide more detailed information.
  • The TPS53632RSMT is rated for operation up to 105°C ambient temperature. However, it's essential to consider the thermal design and ensure proper heat dissipation to maintain a safe junction temperature (TJ) below 150°C.
  • The TPS53632RSMT output voltage can be configured using the VSENSE pin and an external resistor divider network. The output voltage calculation formula is provided in the datasheet (Section 7.4). TI also offers a voltage calculator tool (TPS53632RSMT-VCALC) to simplify the process.
  • The recommended input voltage range for the TPS53632RSMT is 2.7V to 5.5V. Operating the device outside this range may affect its performance, efficiency, and reliability.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TPS53632RSMT Overview

Use the download button to access the TPS53632RSMT schematic symbol, PCB footprint, and 3D model.
