ALSO OPERATES IN ADJUSTABLE VOLTAGE MODE FROM 0.6V TO 5.5V
Analog IC - Other Type:
SWITCHING CONTROLLER
Control Mode:
VOLTAGE-MODE
Control Technique:
PULSE WIDTH MODULATION
Input Voltage-Max:
28 V
Input Voltage-Min:
3 V
Input Voltage-Nom:
12 V
JESD-30 Code:
S-PQCC-N16
JESD-609 Code:
e4
Length:
3 mm
Moisture Sensitivity Level:
2
Number of Functions:
1
Number of Outputs:
1
Number of Terminals:
16
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Output Current-Max:
40 A
Output Voltage-Max:
5.5 V
Output Voltage-Min:
0.6 V
Output Voltage-Nom:
5 V
Package Body Material:
PLASTIC/EPOXY
Package Code:
HVQCCN
Package Equivalence Code:
LCC16,.12SQ,20
Package Shape:
SQUARE
Package Style:
CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Seated Height-Max:
1 mm
Surface Mount:
YES
Switcher Configuration:
BUCK
Switching Frequency-Max:
1000 kHz
Technology:
BICMOS
Temperature Grade:
INDUSTRIAL
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
NO LEAD
Terminal Pitch:
0.5 mm
Terminal Position:
QUAD
Time@Peak Reflow Temperature-Max (s):
30
Width:
3 mm
TPS53819ARGTR Frequently Asked Questions (FAQs)
A good PCB layout for the TPS53819ARGTR involves placing the input capacitors close to the VIN pin, using a solid ground plane, and keeping the high-current paths short and wide. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
When choosing an inductor for the TPS53819ARGTR, consider the inductor's saturation current, DC resistance, and core material. A good starting point is to select an inductor with a saturation current rating of at least 1.5 times the maximum output current, and a DC resistance of less than 100 mΩ.
The TPS53819ARGTR is rated for operation from -40°C to 125°C, but the maximum ambient temperature range depends on the specific application and the device's power dissipation. In general, the device can operate up to 85°C ambient temperature with proper heat sinking and airflow.
The TPS53819ARGTR has a built-in overcurrent protection feature that can be enabled by connecting a resistor from the OCSET pin to GND. The resistor value determines the overcurrent threshold, and the device will shut down if the output current exceeds this threshold.
Yes, the TPS53819ARGTR is qualified for automotive and high-reliability applications. It meets the requirements of the AEC-Q100 standard for automotive applications, and is also suitable for use in industrial and medical applications that require high reliability.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS53819ARGTR Overview

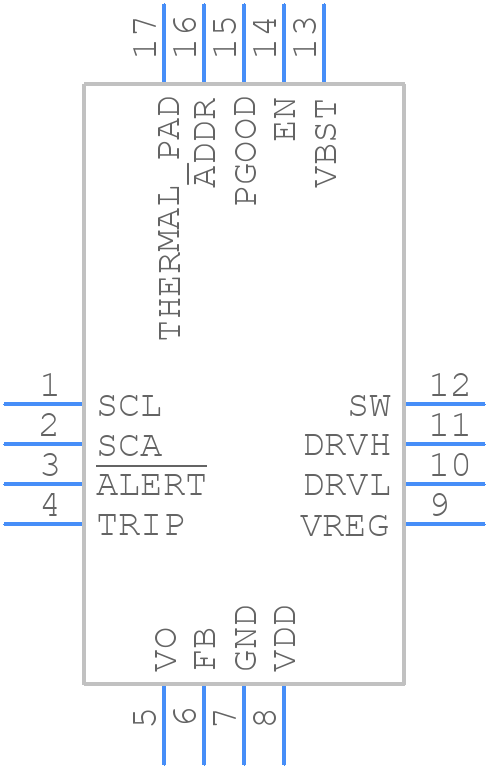

Use the download button to access the TPS53819ARGTR schematic symbol, PCB footprint, and 3D model.
