SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Cel):
260
Seated Height-Max:
1.1 mm
Surface Mount:
YES
Switcher Configuration:
BUCK
Switching Frequency-Max:
2500 kHz
Technology:
BICMOS
Temperature Grade:
MILITARY
Terminal Finish:
Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag)
Terminal Form:
GULL WING
Terminal Pitch:
0.5 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Width:
3 mm
TPS54060MDGQTEP Frequently Asked Questions (FAQs)
The maximum input voltage that can be applied to the TPS54060MDGQTEP is 60V, but it's recommended to operate within the specified input voltage range of 4.5V to 60V for optimal performance and reliability.
To ensure the stability of the output voltage, it's essential to follow the recommended layout guidelines, use a suitable output capacitor, and ensure that the input voltage is within the specified range. Additionally, the output voltage can be adjusted using the feedback resistors, and the output capacitor should be placed close to the output pin to minimize noise and oscillations.
The maximum output current that the TPS54060MDGQTEP can deliver is 6A, but it's recommended to operate within the specified output current range of 0A to 6A for optimal performance and reliability. The output current capability may be limited by the input voltage, output voltage, and thermal conditions.
The TPS54060MDGQTEP has built-in overcurrent protection (OCP) and thermal shutdown (TSD) features to protect the device from damage. However, it's still essential to follow proper design and layout guidelines, use a suitable heat sink, and ensure good thermal conduction to prevent overheating. Additionally, the input voltage and output current should be monitored to prevent excessive stress on the device.
The TPS54060MDGQTEP is rated for operation up to 150°C, but the device's performance and reliability may be affected at high temperatures. It's essential to follow the recommended operating conditions, use a suitable heat sink, and ensure good thermal conduction to prevent overheating. Additionally, the device's power dissipation should be calculated and managed to prevent excessive heat generation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS54060MDGQTEP Overview

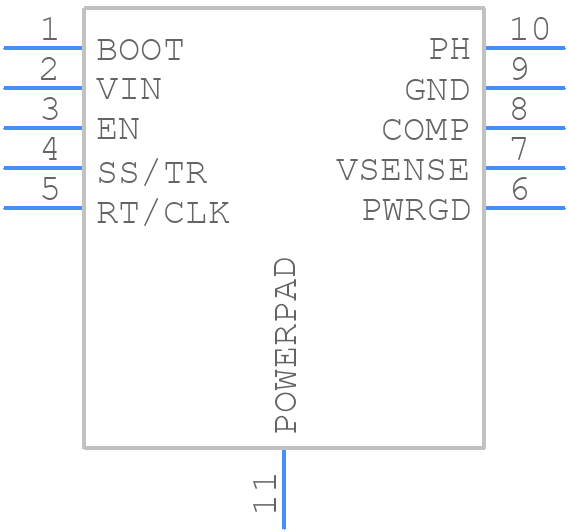

Use the download button to access the TPS54060MDGQTEP schematic symbol, PCB footprint, and 3D model.
