The TPS5410QDRQ1 can handle input voltages up to 60V, but it's recommended to operate within the specified input voltage range of 4.5V to 40V for optimal performance.
To ensure stability, it's essential to follow the recommended layout and component selection guidelines, including the use of a suitable output capacitor and a low-ESR input capacitor. Additionally, the output voltage can be adjusted using the FB pin, and the output voltage stability can be improved by adding a capacitor in parallel with the feedback resistor.
The TPS5410QDRQ1 can provide up to 1A of output current, but the actual output current capability depends on the input voltage, output voltage, and thermal conditions. It's essential to check the thermal derating curves and ensure that the device is operated within the recommended operating conditions.
The TPS5410QDRQ1 has built-in overcurrent protection (OCP) and thermal shutdown (TSD) features. The OCP limits the output current to prevent damage, and the TSD turns off the device if the junction temperature exceeds 150°C. Additionally, it's recommended to add external protection components, such as fuses or PTC thermistors, to ensure safe operation.
The TPS5410QDRQ1 is rated for operation up to 125°C, but the device's performance and reliability may degrade at high temperatures. It's essential to check the thermal derating curves and ensure that the device is operated within the recommended operating conditions. Additionally, consider using thermal management techniques, such as heat sinks or thermal interfaces, to maintain a safe operating temperature.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS5410QDRQ1 Overview

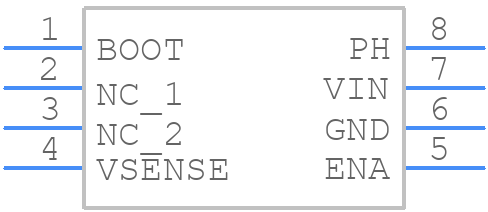

Use the download button to access the TPS5410QDRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS54,
or try a keyword search, such as Switching Regulator or Controllers
