The maximum input voltage that can be applied to the TPS54116QRTWTQ1 is 42V, but it's recommended to operate within the recommended input voltage range of 4.5V to 36V for optimal performance and reliability.
To ensure the stability of the output voltage, it's essential to follow the recommended layout guidelines, use a suitable output capacitor with a low ESR, and ensure that the input voltage is within the recommended range. Additionally, the output voltage can be adjusted using the FB pin, and the output voltage tolerance can be improved by using a voltage reference IC.
The maximum output current that the TPS54116QRTWTQ1 can deliver is 1.5A, but it's recommended to operate within the recommended output current range of 0.1A to 1.2A for optimal performance and reliability.
The TPS54116QRTWTQ1 has built-in overcurrent protection (OCP) and thermal shutdown (TSD) features to protect the device from overcurrent and overheating. Additionally, it's recommended to use a suitable input capacitor, ensure good thermal design, and follow the recommended layout guidelines to prevent overheating.
The TPS54116QRTWTQ1 is rated for operation up to 125°C, but it's recommended to operate within the recommended temperature range of -40°C to 105°C for optimal performance and reliability. It's essential to ensure good thermal design and follow the recommended layout guidelines to prevent overheating.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS54116QRTWTQ1 Overview

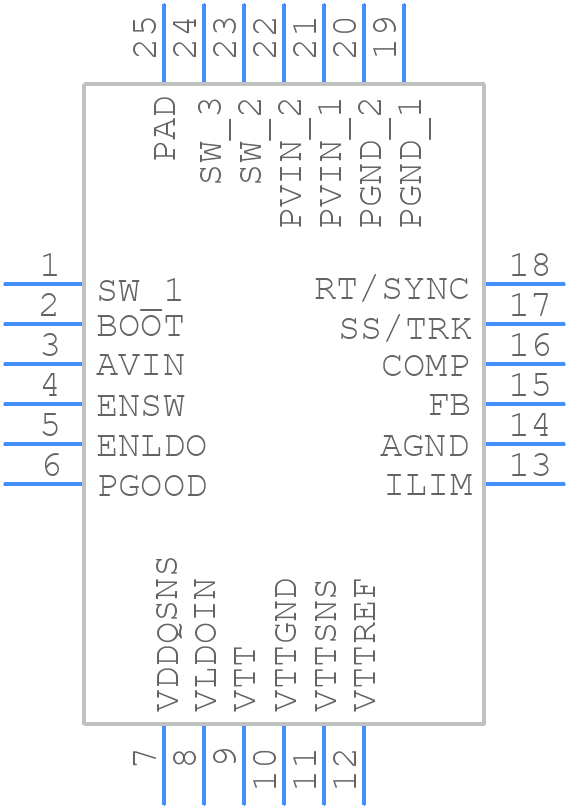

Use the download button to access the TPS54116QRTWTQ1 schematic symbol, PCB footprint, and 3D model.
