The TPS54329EDDA can handle a maximum input voltage of 42V, but it's recommended to operate within the specified input voltage range of 6.5V to 36V for optimal performance.
To ensure the stability of the output voltage, it's essential to follow the recommended layout and component selection guidelines, including the use of a suitable output capacitor and a low-ESR input capacitor. Additionally, the output voltage can be adjusted using the FB pin, and the output voltage stability can be improved by adding a capacitor in parallel with the output capacitor.
The TPS54329EDDA can provide a maximum output current of 3A, but the actual output current capability may be limited by the input voltage, output voltage, and thermal considerations. It's essential to check the device's thermal performance and adjust the output current accordingly.
The TPS54329EDDA has a built-in overcurrent protection feature that can be enabled by connecting a resistor between the OCSET pin and the output voltage. The overcurrent threshold can be set by selecting the appropriate resistor value, and the device will limit the output current to prevent damage in the event of an overload.
The EN (enable) pin is used to enable or disable the device. When the EN pin is pulled high, the device is enabled, and when it's pulled low, the device is disabled. This pin can be used to implement power sequencing, shutdown, or other power management functions.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS54329EDDA Overview

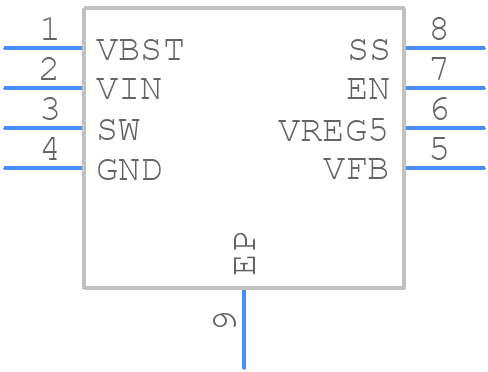

Use the download button to access the TPS54329EDDA schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS54,
or try a keyword search, such as Switching Regulator or Controllers
