The maximum input voltage that can be applied to the TPS54335-2ADRCT is 42V, but it's recommended to operate within the specified input voltage range of 6.5V to 36V for optimal performance and reliability.
To ensure the stability of the output voltage, it's essential to follow the recommended layout guidelines, use a suitable output capacitor with a low ESR, and ensure that the input voltage is within the specified range. Additionally, the output voltage can be adjusted using the feedback resistors, and the output voltage tolerance should be considered when selecting the output capacitor.
The EN (enable) pin is used to enable or disable the device. When the EN pin is pulled high (above 1.4V), the device is enabled, and when it's pulled low (below 0.4V), the device is disabled. This pin can be used to implement power sequencing, shutdown, or low-power modes in your design.
The output voltage of the TPS54335-2ADRCT can be calculated using the following formula: Vout = (R1 / R2) * 0.8V, where R1 and R2 are the feedback resistors. The output voltage can be adjusted by selecting the appropriate values for R1 and R2.
The maximum output current that the TPS54335-2ADRCT can deliver is 3A. However, the output current should be derated based on the input voltage, output voltage, and ambient temperature to ensure reliable operation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS54335-2ADRCT Overview

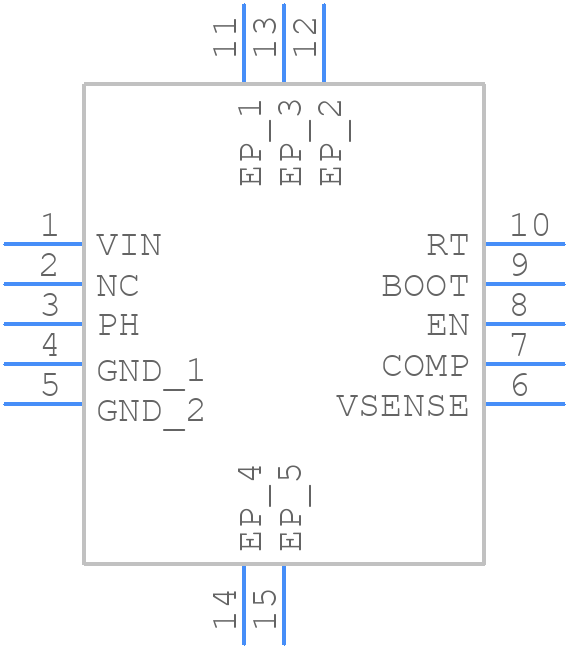

Use the download button to access the TPS54335-2ADRCT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS54,
or try a keyword search, such as Switching Regulator or Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
