The maximum input voltage that can be applied to the TPS54339EDDAR is 42V, but it's recommended to operate within the specified input voltage range of 6.5V to 36V for optimal performance.
To ensure the stability of the output voltage, it's essential to follow the recommended layout and component selection guidelines, including the use of a suitable output capacitor and a low-ESR input capacitor. Additionally, the output voltage can be adjusted using the FB pin, and the output voltage stability can be improved by adding a capacitor in parallel with the output capacitor.
The EN (enable) pin is used to enable or disable the device. When the EN pin is pulled high (above 1.4V), the device is enabled, and when it's pulled low (below 0.4V), the device is disabled. This pin can be used to implement power sequencing, shutdown, or low-power modes in the system.
The output voltage of the TPS54339EDDAR can be calculated using the following formula: Vout = 0.8V x (R1/R2), where R1 and R2 are the resistors connected to the FB pin. The output voltage can be adjusted by changing the ratio of R1 and R2.
The maximum output current that the TPS54339EDDAR can deliver is 3A, but it's recommended to operate within the specified output current range of 0A to 2.5A for optimal performance and to prevent overheating.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS54339EDDAR Overview

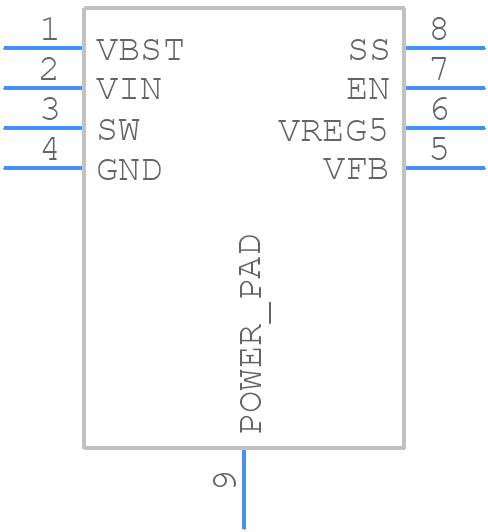

Use the download button to access the TPS54339EDDAR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS54,
or try a keyword search, such as Switching Regulator or Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
