TPS54360QDDARQ1 - Texas Instruments

Description: 4.5-V to 60-V Input, 3.5-A, Step-Down DC-DC Converter with Eco-mode™

Download TPS54360QDDARQ1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

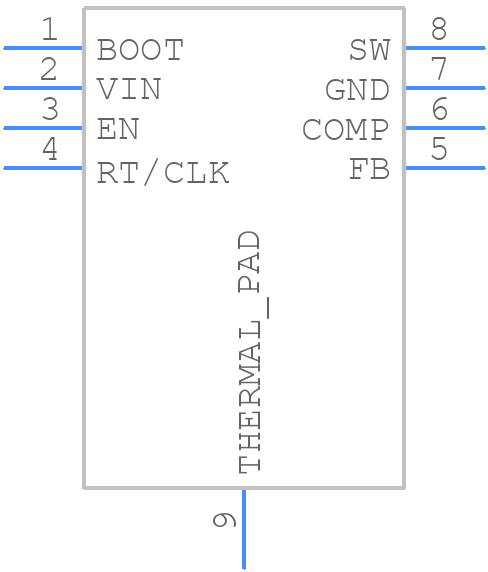

TPS54360QDDARQ1 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS54360QDDARQ1 - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - TPS54360
click to zoom
3D Models
TPS54360QDDARQ1 - Texas Instruments - 3D model - Small Outline Packages - TPS54360
click to zoom

TPS54360QDDARQ1 Details

  • Manufacturer Part Number:

    TPS54360QDDARQ1

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    3.9

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    60 V

  • Input Voltage-Min:

    4.5 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    3.5 A

  • Output Voltage-Max:

    58.8 V

  • Output Voltage-Min:

    0.8 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HLSOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, LOW PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.7 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    2500 kHz

  • Technology:

    BICMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

TPS54360QDDARQ1 Frequently Asked Questions (FAQs)

  • The maximum input voltage that can be applied to the TPS54360QDDARQ1 is 60V, but it's recommended to operate within the specified input voltage range of 12V to 42V for optimal performance and reliability.
  • To ensure stability, it's essential to follow the recommended layout and component selection guidelines provided in the datasheet. Additionally, make sure to use a suitable output capacitor with a low equivalent series resistance (ESR) and a sufficient capacitance value to filter out ripple and noise.
  • The TPS54360QDDARQ1 can deliver up to 3A of output current, but the actual current capability may be limited by the input voltage, output voltage, and thermal considerations. Be sure to check the datasheet for specific current ratings and thermal derating curves.
  • The TPS54360QDDARQ1 has a built-in overcurrent protection feature that can be enabled by connecting a resistor between the OCSET pin and the input voltage. The value of the resistor determines the overcurrent threshold. Consult the datasheet for specific implementation details and resistor value calculations.
  • The EN (enable) pin is used to turn the regulator on or off. When the EN pin is pulled high (above 1.4V), the regulator is enabled, and when it's pulled low (below 0.4V), the regulator is disabled. This pin can be used to implement power sequencing or to turn off the regulator during shutdown or standby modes.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TPS54360QDDARQ1 Overview

Use the download button to access the TPS54360QDDARQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS54, or try a keyword search, such as Switching Regulator or Controllers

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.

Suggested Parts

If you searched for TPS54360QDDARQ1, you might also be interested in these parts:
Part Number
TAJA106K016HNJ
LM2937ES-3.3/NOPB
B560C-13-F
LT3091EFE#PBF
BCX69-25
SM4002
BYV72EW-200
LPC1768UKZ
12103C824JAT2A

Parts related to TPS54360QDDARQ1

Showing 0 results

Part Image

← Prev Next →
About Us Contact Us Terms of Service Do not sell or share my personal information Privacy Policy Digital Services Act Library Loader Twitter LinkedIn

All content Copyright © 2020, Supplyframe.com. All rights reserved. Back to top ↑

TPS54360QDDARQ1 Alternates

Showing results

Image Part Number Model
Part Image TPS54360DDAR Texas Instruments

Switching Regulator, Current-mode, 3.5A, 2500kHz Switching Freq-Max, PDSO8
Part Image TPS54360BQDDARQ1 Texas Instruments

Dual Switching Controller, Current-mode, 3.5A, 2500kHz Switching Freq-Max, BICMOS, PDSO8
Part Image TPS54360DDA Texas Instruments

Switching Regulator, Current-mode, 3.5A, 2500kHz Switching Freq-Max, PDSO8
Part Image TPS54360BDDAR Texas Instruments

Switching Regulator, Current-mode, 3.5A, 2500kHz Switching Freq-Max, PDSO8
Part Image TPS54360QDDAQ1 Texas Instruments

Switching Regulator, Current-mode, 3.5A, 2500kHz Switching Freq-Max, BICMOS, PDSO8
For a full list of alternate parts for TPS54360QDDARQ1, check out Findchips.com
