The maximum input voltage that can be applied to the TPS54362BQPWPRQ1 is 42V, but it's recommended to operate within the specified input voltage range of 5.5V to 36V for optimal performance and reliability.
To ensure the stability of the output voltage, it's essential to follow the recommended layout guidelines, use a suitable output capacitor with low ESR, and ensure that the input voltage is within the specified range. Additionally, the output voltage can be adjusted using the FB pin, and the output voltage tolerance can be set using the EN pin.
The maximum output current that the TPS54362BQPWPRQ1 can deliver is 3A, but it's recommended to operate within the specified output current range of 0.5A to 2A for optimal performance and reliability.
To protect the TPS54362BQPWPRQ1 from overheating, ensure that the device is operated within the specified temperature range of -40°C to 125°C, and that the thermal pad is properly connected to a heat sink or a thermal pad on the PCB. Additionally, ensure that the device is not operated in a high-temperature environment for an extended period.
The EN pin is an enable input that allows the user to turn the device on or off. When the EN pin is high, the device is enabled, and when it's low, the device is disabled. The EN pin can be used to implement power sequencing, shutdown, or low-power modes in the system.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS54362BQPWPRQ1 Overview

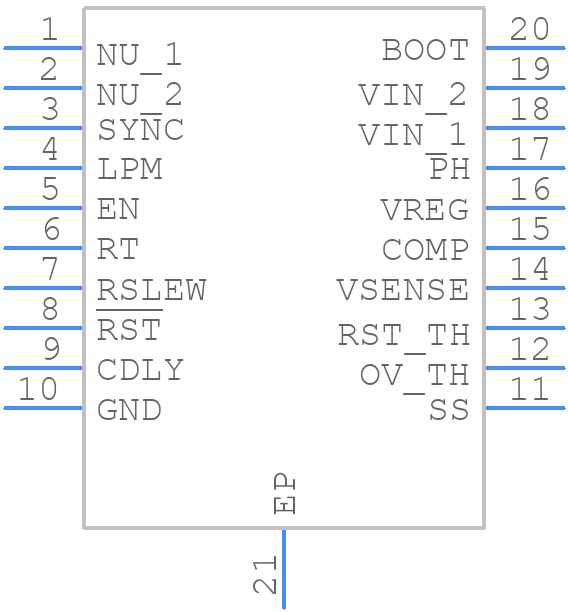

Use the download button to access the TPS54362BQPWPRQ1 schematic symbol, PCB footprint, and 3D model.
