Part Image

TPS54424RNVR - Texas Instruments

Description: 4.5V to 17V Input, Current Mode, 4A Synchronous SWIFT™ Step-Down Converter

Download ECAD Model

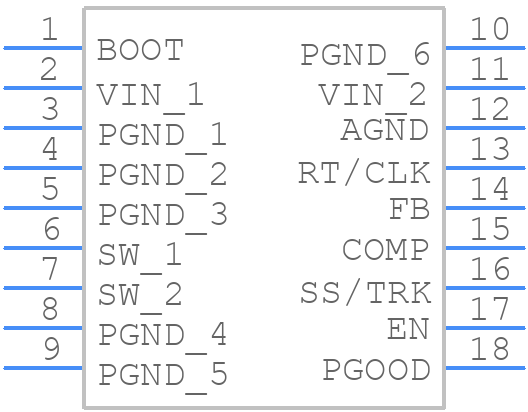

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download

PCB Footprints

TPS54424RNVR - Texas Instruments PCB footprint - Other - Other - RNV0018B
click to zoom

3D Models

TPS54424RNVR - Texas Instruments  - 3D model - Other - RNV0018B
click to zoom

TPS54424RNVR Details

  • Manufacturer Part Number:

    TPS54424RNVR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    HQCCN,

  • Reach Compliance Code:

    compliant

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • Date Of Intro:

    2017-07-25

  • Manufacturer:

    Texas Instruments

  • Risk Rank:

    1.06

  • Samacsys Modified On:

    2020-07-24 16:21:21

  • YTEOL:

    15

  • Additional Feature:

    ADJUSTABLE VOLTAGE RANGE IS 0.6 TO 12V

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    17 V

  • Input Voltage-Min:

    4.5 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    S-PQCC-N18

  • JESD-609 Code:

    e4

  • Length:

    3.5 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    18

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    4 A

  • Output Voltage-Max:

    12 V

  • Output Voltage-Min:

    0.6 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    1600 kHz

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    NICKEL PALLADIUM GOLD

  • Terminal Form:

    NO LEAD

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.5 mm

Trust Checks

Expert Contribution
System Verified
Community Approved
Sponsored

TPS54424RNVR Overview

Use the download button to access the TPS54424RNVR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS54, or try a keyword search, such as Switching Regulator or Controllers

Parts related to TPS54424RNVR

Showing 0 results

TPS54424RNVR Alternates

Showing results

Image Part Number Model
Part Image TPS54424RNVT Texas Instruments

4.5V to 17V Input, Current Mode, 4A Synchronous SWIFT™ Step-Down Converter 18-VQFN-HR -40 to 150
