Texas Instruments provides a recommended PCB layout in the TPS54494RSAT evaluation module documentation, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise.
The selection of the output capacitor depends on the output voltage, output current, and ripple requirements. A general guideline is to choose a capacitor with a capacitance value of at least 10uF to 22uF, and a voltage rating of at least 1.5 times the output voltage. Additionally, consider the capacitor's ESR, ESL, and ripple current rating.
Although the datasheet specifies a maximum input voltage of 5.5V, it's recommended to limit the input voltage to 5V to ensure reliable operation and prevent damage to the device. Exceeding the maximum input voltage can cause internal damage or affect the device's performance.
The TPS54494RSAT has a built-in OCP and SCP feature. To implement it, connect the OCP pin to a resistor divider network that sets the current limit threshold. The device will automatically shut down when the output current exceeds the set threshold. For SCP, connect the SCP pin to a resistor that sets the short-circuit detection threshold.
To ensure reliable operation, it's essential to implement proper thermal management. Use a heat sink or thermal pad to dissipate heat, and ensure good airflow around the device. The datasheet provides thermal resistance and junction-to-ambient temperature ratings to help with thermal design.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS54494RSAT Overview

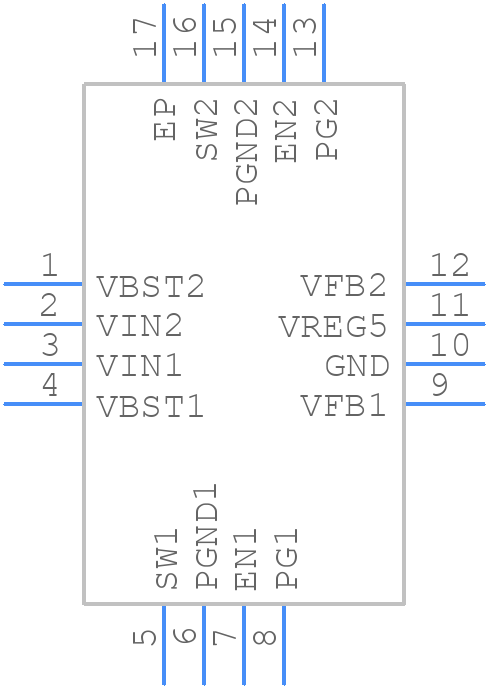

Use the download button to access the TPS54494RSAT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS54,
or try a keyword search, such as Switching Regulator or Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
