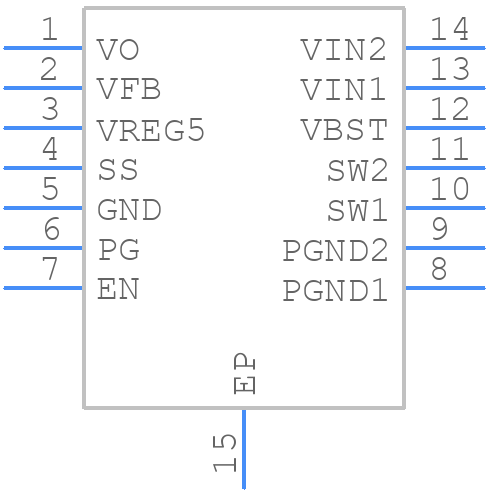

TPS54525PWPR - Texas Instruments

TPS54525PWPR Details

• Manufacturer Part Number:

  TPS54525PWPR

• Brand Name:

  Texas Instruments

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Country Of Origin:

  Malaysia

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.90

• Manufacturer:

  Texas Instruments

• YTEOL:

  15

• Additional Feature:

  ADJUSTABLE MODE FROM 0.76 TO 5.5V

• Analog IC - Other Type:

  SWITCHING REGULATOR

• Control Mode:

  VOLTAGE-MODE

• Control Technique:

  PULSE WIDTH MODULATION

• Input Voltage-Max:

  18 V

• Input Voltage-Min:

  4.5 V

• Input Voltage-Nom:

  12 V

• JESD-30 Code:

  R-PDSO-G14

• JESD-609 Code:

  e4

• Length:

  5 mm

• Moisture Sensitivity Level:

  2

• Number of Functions:

  1

• Number of Outputs:

  1

• Number of Terminals:

  14

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Output Current-Max:

  5.5 A

• Output Voltage-Max:

  5.5 V

• Output Voltage-Min:

  0.76 V

• Output Voltage-Nom:

  5.5 V

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  HTSSOP

• Package Equivalence Code:

  TSSOP14,.25

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

• Peak Reflow Temperature (Cel):

  260

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  1.2 mm

• Surface Mount:

  YES

• Switcher Configuration:

  BUCK

• Switching Frequency-Max:

  650 kHz

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  Nickel/Palladium/Gold (Ni/Pd/Au)

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.65 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  4.4 mm
