The maximum input voltage that can be applied to the TPS54560QDDARQ1 is 42V, but it's recommended to operate within the specified input voltage range of 6.5V to 36V for optimal performance and reliability.
To ensure the stability of the output voltage, it's essential to follow the recommended layout guidelines, use a suitable output capacitor with a low ESR, and ensure that the input voltage is within the specified range. Additionally, the output voltage can be adjusted using the FB pin, and the output voltage tolerance can be improved by using a voltage reference IC.
The TPS54560QDDARQ1 can deliver up to 5A of output current, but the actual output current capability may be limited by the input voltage, output voltage, and thermal considerations. It's essential to check the thermal performance and power dissipation in the application to ensure reliable operation.
The TPS54560QDDARQ1 has built-in overcurrent protection (OCP) and thermal shutdown (TSD) features to protect the device from damage. However, it's still essential to follow proper PCB design and layout guidelines, use a suitable heat sink if necessary, and ensure that the device is operated within the specified temperature range.
The TPS54560QDDARQ1 is specified to operate from -40°C to 150°C, but the device's performance and reliability may be affected at high temperatures. It's essential to check the device's thermal performance and power dissipation in the application to ensure reliable operation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS54560QDDARQ1 Overview

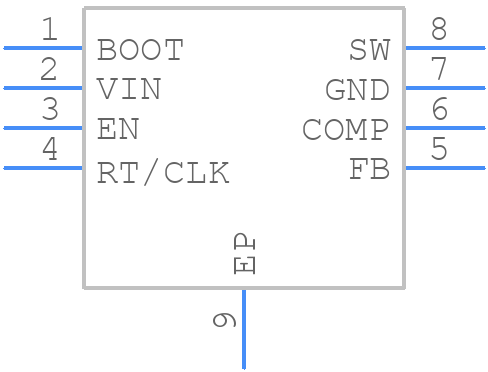

Use the download button to access the TPS54560QDDARQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS54,
or try a keyword search, such as Switching Regulator or Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
