Texas Instruments provides a recommended PCB layout in the datasheet (Figure 23) and in the TPS54610 Evaluation Module User's Guide (SLUU444). It's essential to follow these guidelines to minimize noise, ensure proper thermal performance, and optimize the device's operation.
The output capacitor selection depends on the output voltage, output current, and desired transient response. TI recommends using a low-ESR capacitor (e.g., ceramic or polymer) with a minimum capacitance of 10 μF. A higher capacitance can improve transient response, but may increase the device's startup time.
Although the datasheet specifies a maximum input voltage of 6.5 V, the device can handle up to 7 V for short durations (e.g., during startup or voltage transients). However, sustained operation above 6.5 V may reduce the device's reliability and lifespan.
The TPS54610 has a built-in OCP and SCP feature. To implement it, connect the OCP pin to a resistor divider network that sets the current limit threshold. The device will automatically shut down if the output current exceeds this threshold. For SCP, the device will latch off if the output is short-circuited.
The thermal derating curve is not explicitly provided in the datasheet. However, TI recommends following the thermal design guidelines in the datasheet (Section 10) and using thermal simulation tools (e.g., TI's Thermal Calculator) to ensure the device operates within its recommended temperature range.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS54610QPWPRG4Q1 Overview

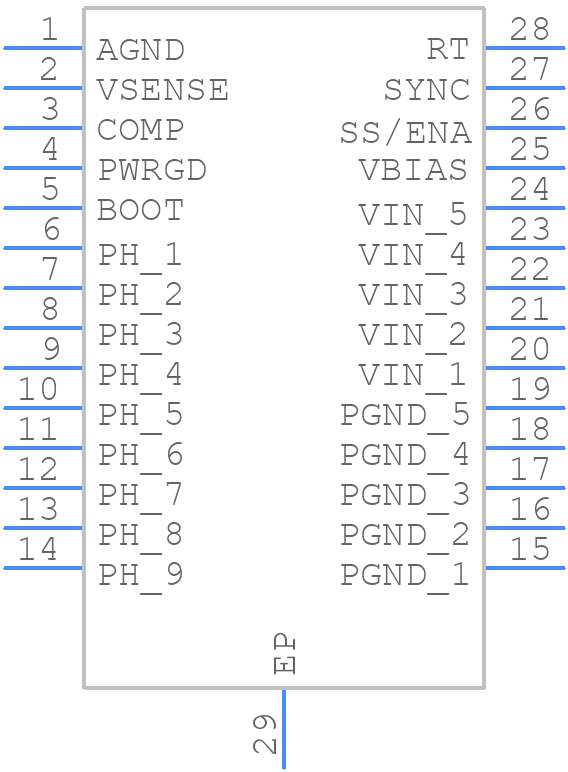

Use the download button to access the TPS54610QPWPRG4Q1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS54,
or try a keyword search, such as Switching Regulator or Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
