SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Seated Height-Max:
1.2 mm
Surface Mount:
YES
Switcher Configuration:
BUCK
Switching Frequency-Max:
700 kHz
Technology:
BICMOS
Temperature Grade:
AUTOMOTIVE
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
0.65 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Width:
4.4 mm
TPS54680QPWPREP Frequently Asked Questions (FAQs)
The maximum input voltage that can be applied to the TPS54680QPWPREP is 6.5V, as specified in the datasheet. However, it's recommended to keep the input voltage below 6V to ensure reliable operation and to prevent damage to the device.
To optimize the layout of the TPS54680QPWPREP, follow the guidelines provided in the datasheet and application notes. Keep the input and output capacitors close to the device, use a solid ground plane, and minimize the length of the traces. Additionally, use shielding and filtering techniques to reduce EMI and noise.
The recommended operating temperature range for the TPS54680QPWPREP is -40°C to 125°C. However, the device can operate up to 150°C with reduced performance and reliability. It's essential to ensure proper thermal management and heat sinking to maintain the device within the recommended operating temperature range.
To select the right output capacitor for the TPS54680QPWPREP, consider the output voltage, output current, and ripple requirements. A general rule of thumb is to use a capacitor with a capacitance value of at least 10uF and a voltage rating of at least 1.5 times the output voltage. Additionally, choose a capacitor with low ESR and high ripple current capability.
The EN (enable) pin on the TPS54680QPWPREP is used to enable or disable the device. When the EN pin is high, the device is enabled, and when it's low, the device is disabled. To use the EN pin, connect it to a logic signal or a voltage source that can drive the pin high or low. Ensure that the EN pin is properly terminated and decoupled to prevent noise and oscillations.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS54680QPWPREP Overview

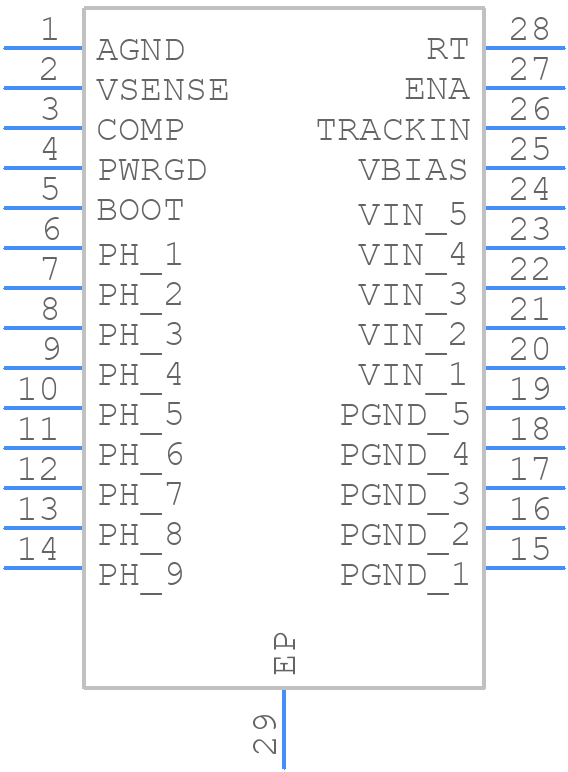

Use the download button to access the TPS54680QPWPREP schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS54,
or try a keyword search, such as Switching Regulator or Controllers
